HRSM Explosion-Proof
XE HRSM 2000-EXP Mobile Fog Fan - Explosion-Proof Humidification & Cooling System
Manufactured in the USA by Jaybird Manufacturing

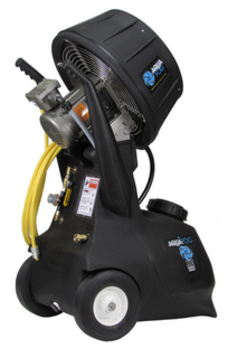

The Aquafog XE HRSM-2000-EXP is a mobile fogging system built around Jaybird’s high-output XE centrifugal atomizer and an explosion-proof (hazardous-duty) motor for use in classified or explosion-prone environments. Designed for industrial humidification, evaporative cooling, dust suppression, and chemical fogging, the HRSM-EXP delivers portable high-volume fog production in facilities where standard equipment is not permitted.
Unlike high-pressure nozzle systems or spinning disc foggers, the HRSM-EXP uses Jaybird’s nozzle-free centrifugal atomization technology, producing extremely fine fog while eliminating clogged nozzles and high-pressure pumps.

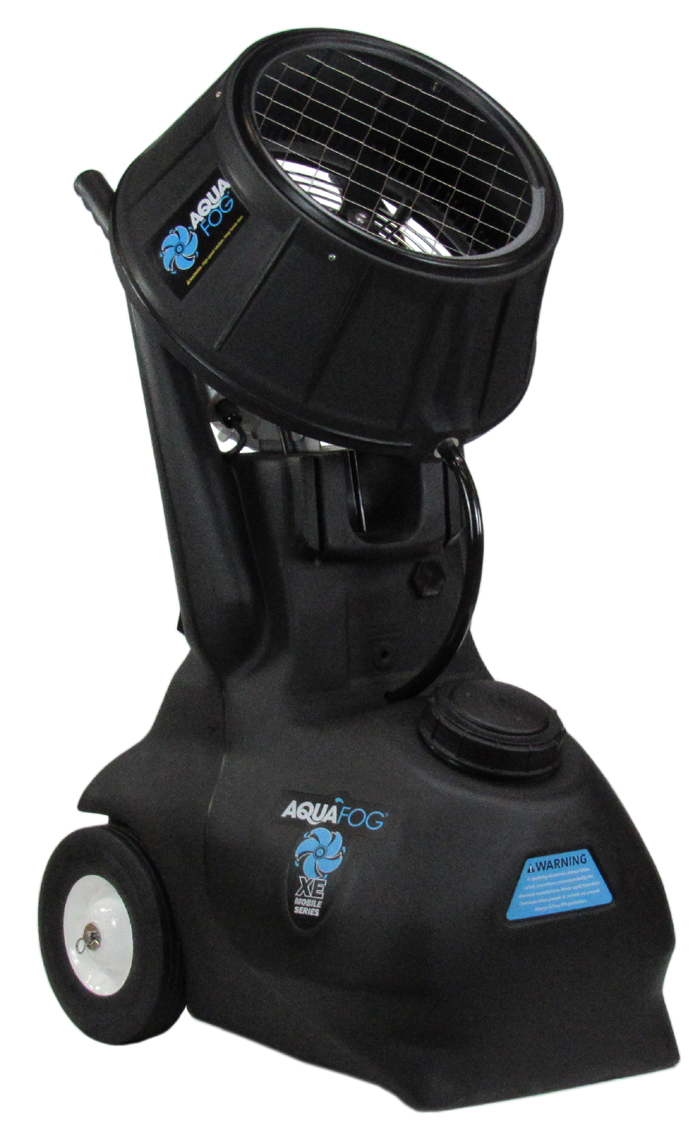

The HRSM-EXP includes an 18-gallon integrated supply tank, rugged wheeled chassis, and 4-position pivoting fogging head. Water flow is regulated by a quarter-turn ball valve and the system can be operated continuously or automated using a secondary hazardous-duty controller (where applicable).
Part of the Mobile XE Atomizer Family
- HRSM (XE HRSM-2000)
- HRSM-EXP (XE HRSM-2000-EXP) – {This Model}
- CRSM (XE CRSM-2000)
- ORSM (XE ORSM-2000)
The XE platform represents our largest atomizer class, designed for maximum coverage and industrial-scale output.
Performance Highlights
- Net Fogging Output: Up to 13.5 GPH
- Evaporative Cooling Capacity: 109,350 BTU/hr
- Explosion-Proof (Hazardous-Duty) Motor
- Conduit Fittings (Hazardous Location Setup)
- Pivoting Fogging Head (4-Position)
- 18-Gallon Tank w/ Float Valve Control
- Nozzle-Free Centrifugal Atomizer
- 25' Power Cord & Fittings
- Starting at $3,769.00
Optional: SST Stainless Plumbing for oxidizers and sterilization chemicals
Mobile XE Configuration Comparison
Compare Mobile XE models to choose the right control style and application fit for your facility.
| Feature | [XE] HRSM | [XE] HRSM-EXP | [XE] CRSM | [XE] ORSM |
| Purpose | Humidification | Hazardous Locations | Chemical Fogging | Odor Control / Chemical Injection |
| Control Type | Ball Valve | Ball Valve | Timer + Auto Shut-Off | Smart Control + Auto Shut-Off |
| Max. Output | 13.5 GPH | 13.5 GPH | 9.0 GPH | 8.0 GPH |
| Bottom Feed Pump | No | No | Yes | No |
| Tank Agitation | No | No | Yes | No |
| Inlet Port for Metering Pump | No | No | Yes | Yes |
| Hazardous-Duty | No | Yes | No | No |
| Best For | Humidity / Cooling | Classified Areas | Pesticides | Odor Control & Sterilization |
All mobile fog systems ship freight and arrive fully assembled.
Hazardous-Location Humidification & Cooling Applications
The Jaybird XE HRSM-2000-EXP is engineered for facilities requiring explosion-proof humidification and evaporative cooling in classified or hazardous environments where volatile vapors, combustible dust, or other ignition risks may be present. Using Jaybird’s nozzle-free centrifugal atomizer technology, the HRSM-EXP produces ultra-fine fog and strong air propulsion while avoiding the nozzle clogging and high-pressure maintenance associated with typical misting systems.
Typical applications include:
- Hazardous-location humidification
- Dust suppression in explosion-prone environments
- Evaporative cooling in classified areas
- Industrial processing facilities with volatile vapors
- Mines and underground mines
- Military hangars and aerospace facilities
When explosion-proof equipment is required, the HRSM-EXP provides a rugged, self-contained mobile platform with industrial-scale fog output for demanding environments.
- Click to ViewFeatures
- Click to ViewSpecifications
- Click to ViewCertifications
- Click to ViewAccessories
Features & Controls

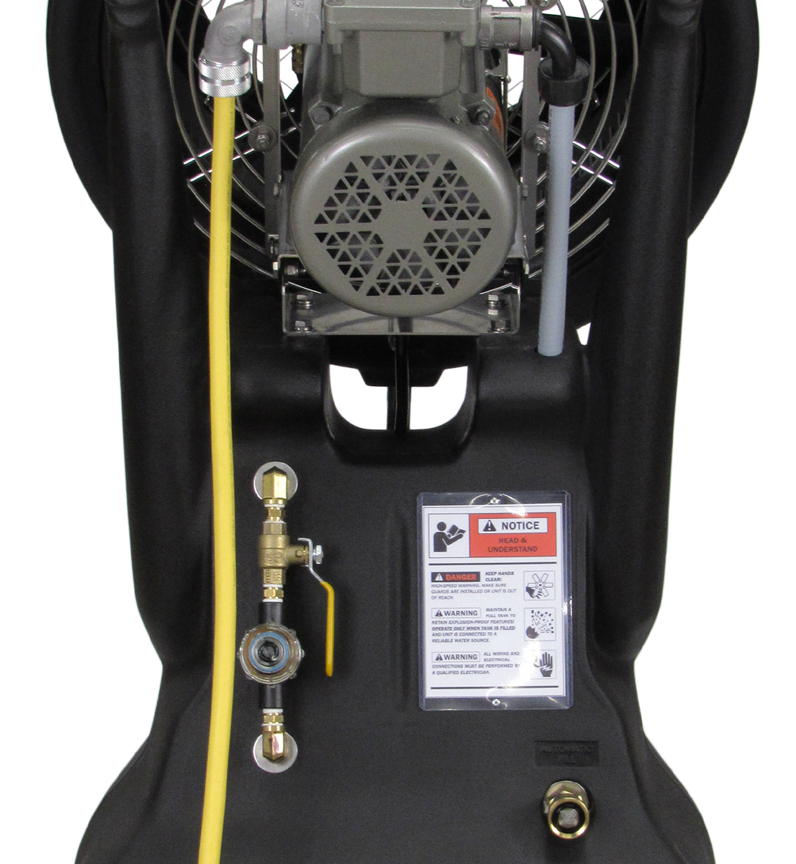

HRSM-EXP units include an internal feed pump, a manual 1/4-turn flow control valve, and an internal float valve to maintain proper tank water level during operation. Controls are simplified to meet explosion-proof requirements, with no integrated On/Off switch.
- 1/4-turn flow control valve
- In-line strainer
- Internal float valve (automatic water level control)
- Large tank access lid
- Garden hose connection
The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.
Flow Control Guide
| Valve Position | Typical Use | Fog Character |
|---|---|---|
| Full Open | Evaporative cooling, greenhouse cooling, concrete curing, mushroom growing | Highest output / heavier fog |
| Mid Open | General humidification, horticulture, wine barrel storage, wood/lumber/paper applications | Balanced output / general-purpose fogging |
| Slightly Open | Textile humidification, dust suppression, static control, lighter treatment applications | Drier / finer fog |
Control Tip: Start with a lower valve setting and increase flow only as needed. This helps maintain finer fog quality and reduces excess wetting.
Drainage Port
A specially engineered drainage port at the base of the motor allows condensation to escape, helping prevent internal moisture buildup while preserving the motor’s explosion-proof integrity.
- Extends motor life
- Made in USA
Flexible Cable
Optional flexible cord packages are available for installations requiring mobility or non-rigid connections.
- Extra hard usage rated
- STOW yellow jacket (660V, 60°C)
- UL / CSA / MSHA / RoHS compliant
| Unit Dimensions: |
Width 21 in / 53 cm Length 25.5 in / 65 cm Height 44 in / 112 cm |
| Approximate Unit Weight: | 88 lbs / 39.9 kg |
| Shipping Weight: | 138 lbs/ 62.6 kg |
| Shipping Dimentions: | 46”x 24”x 32” (LxWxH) |
| Fogging Head Pivot Angle: | 0°, 15°, 30°, 45° |
| Propulsion Distance: | 30 - 35 ft / 9.1 - 10.5 m |
| Main Motor: | 1/2 HP - 7.8 amps @ 115V 60Hz |
| Noise @ 10 ft: |
72 dB(A) |
| Average Particle Size: |
5-10 microns @ low volume 20 microns @ mid volume 25 microns @ high volume |
| Max. Fogging Output: |
13.5 GPH |
| Tank Capacity: | 18 US gal / 68 L |
| CFM: | 3,000 |
| Cooling Capability: | 109,350 Btu/h |
| 304 Stainless Steel: |
All hardware, sheet steel and |
| Environment: |
Endures temperatures from Indoors / outdoors Humidity to 85% RH UV stabilized & impact resistant |
| Country of Origin: |
USA |

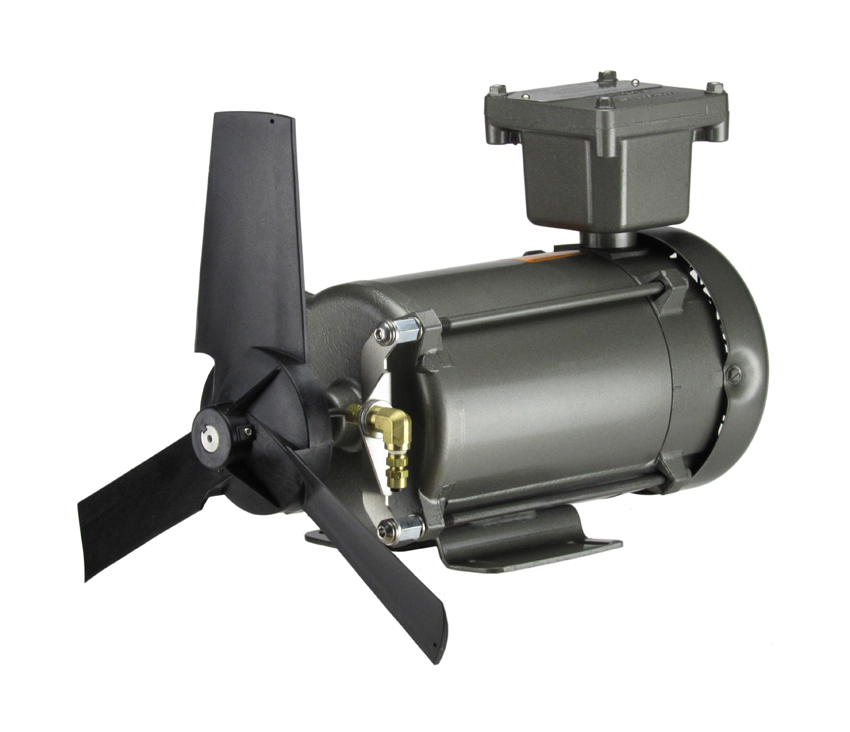

ABB explosion-proof motors used on the HRSM-EXP are UL and CSA approved for the following hazardous locations:
- Class 1, Group D locations containing volatile gases such as Gasoline, Hexane, Naphtha, Benzene, Propane, Alcohol, etc.
- Class 2, Group F & G locations containing dust such as (F) Carbon Black, Coal or Coke Dust or Group (G) Flour, Starch, or Grain Dusts.
-
Hazardous Duty Plug - 125VThis high-quality plug can be used with the HRSM-EXP to allow for mobility. Only use in conjunction with a hazardous duty receptacle.
- NEMA 5-20P configuration
-
UL & CSA Approved
-
Temperature-Humidity MeterIdeal for applications below 95% Relative Humidity
This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
in °F or °C.- Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
- Humidity range/accuracy: 20 to 95%RH /3%
- Response time: 60 seconds
- Power source: CR2032 Lithium-ion battery (included)
-
Temperature-Humidity Meter w/ Dew PointIdeal for applications up to 100% Relative Humidity
This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.
- Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
- Humidity range/accuracy: 0 to 100%RH /3%
- Response time: 60 seconds
- Power source: Two "AAA" batteries (included)
