Bench Top

SS-700-BT 115V/60Hz $675.00
View controls & accessories

SS 700-BT Fog Fan – Bench Top
Agricultural & Industrial
Humidification System

Manufactured in the USA by Jaybird Manufacturing

The Hydro SS 700-BT fogging system is our smallest and quietest atomizer, engineered for dependable humidification, evaporative cooling, and spot cooling in commercial, agricultural, and residential environments.

Unlike high-pressure misting systems that rely on nozzles and pumps, the SS 700-BT connects to an ordinary water supply and uses centrifugal atomization to produce tiny particles that evaporate quickly for efficient cooling and humidity control.

The Bench Top configuration requires no drainage line because its integrated sump tank recycles waste water. The unit is regulated by a quarter-turn ball valve and can be operated continuously or automated using a secondary controller.

Product Video

Its stainless-steel construction and UV-stabilized polymers make it well suited for greenhouse and other harsh-environment applications.

High-Output Fogging in Action

  • No nozzle clogging or high pressure pumps
  • Projects fog into the air for quick evaporation
  • Designed for small-mid-area cooling, humidification, and
    chemical fogging

Distributes consistent fog output (image of HS, same performance as BT)
for localized cooling, humidification, and environmental control

Part of the SS Atomizer Family

Performance Highlights

  • Fogging Output: Up to 3.5 GPH
  • Low Noise | 12' Fog Propulsion
  • OSHA Guard
  • 28,500 Btu/h Evaporative Cooling
  • Arrives Fully Assembled
  • Includes 20' Water Line and 14' Power Cord
  • No Drainage Line Required

View Frequently Asked
Questions for the Hydro SS Series →

SS 700 Configuration Comparison

Compare SS 700 configurations to determine the best installation method for your facility.

Feature [SS] Direct Feed [SS] Bench Top [SS] Hanging Sump
Drain Required Yes No No
Recirculating Tank No Yes Yes
Flowmeter Panel Yes No No
Shipping Method UPS UPS UPS
Assembly Required None - Fully Assembled None - Fully Assembled None - Fully Assembled
Best For Permanent Install Drain-Free Install Drain-Free Install

Industrial Humidification & Cooling Applications

The Hydro SS 700-BT is designed for compact, reliable humidification and cooling where quiet operation, simple installation, and consistent fog production are important. Its bench top sump design makes it ideal for drain-free installations using a standard pressurized water supply.

Compact size and balanced design allow for easy
handling and flexible installation options

Typical applications include:

  • Agriculture and greenhouse humidity control
  • Food packing and processing areas
  • Environmental humidity control systems
  • Commercial and residential evaporative cooling
  • Spot cooling for indoor and outdoor work areas

The SS 700-BT delivers fine fog production without the complexity of high-pressure nozzles, making it a practical solution for users who need dependable performance in a compact, recirculating atomizer system.

SS-700-BT        115V 60Hz 1Ph                 $675.00

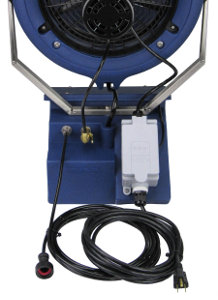

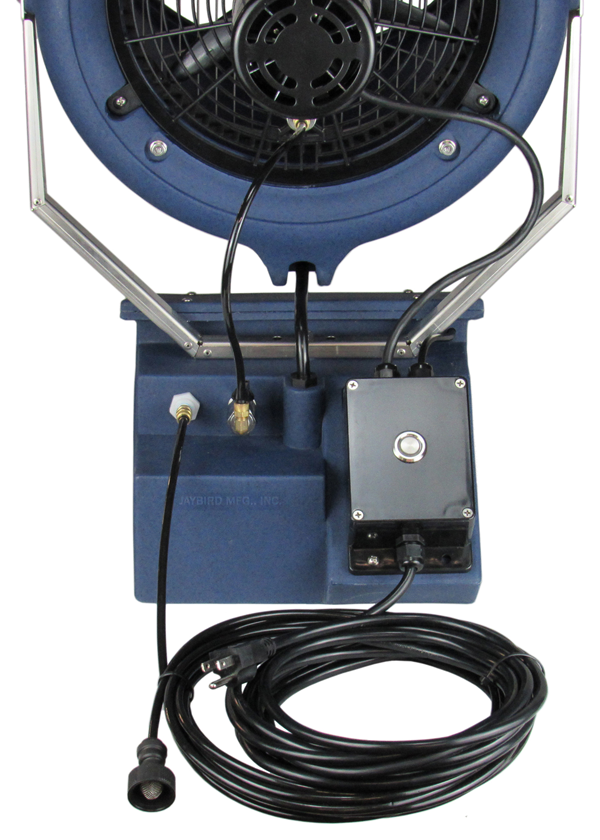

Features & Controls

SS 700-HS units include an internal feed pump, a manual 1/4-turn flow control valve, an illuminated On/Off power switch, and an internal float valve to maintain proper tank water level during operation.

  • Large tank access lid
  • 1/4-turn flow control valve
  • Recirculation tank
  • Indoor/Outdoor rated (IP55)
  • Illuminated push-button switch
  • Garden hose connection

The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Fogging Capability: Up to 3.5 gal per hour
CFM: 980

Cooling Capability:

28,500 Btu/h @ 60Hz
Motor: 1/20 HP, 115V, 60Hz
Energy Consumption: 1.6A @ 115V
Noise @ 10 ft distance: 63 dB(A) @ 10 ft
Average Particle Size: 25 microns
Weight: 17 lbs
Unit Dimensions:

Width 16"

Depth 18"

Height 25"
Hardware: 304 (18/8) Series stainless steel
Environment:

Endures temperatures from
33° to 160°

Indoors / outdoors

Humidity to 85% RH

UV stabilized & impact resistant
Shipping Weight:

28 lbs
Box Dimensions:

25" x 20" x 21"
Country of Origin:

USA
  • Digital Humidistat Control

    Digital Humidity Control for GT500 & SS-700 Systems
    Environmental controller with humidity sensor for hanging sump and self-contained units.

    Fast-acting digital control maintains consistent humidity levels with adjustable setpoint and differential. Displays real-time RH and automatically controls fogging output based on conditions.

    Programming Difficulty: Level 4 (Moderate–Easy)

    Pre-wired with plug-in connections for quick installation—no hard wiring required.

    • Controls GT500 and SS-700 units (1200W, 10A @ 115V)
    • Humidity range: 5–99% RH
    • Fast-response digital sensor
    • Over-humidity and sensor fault alarms

    Not recommended for prolonged operation above 90% RH.

    DH-36 $92.00

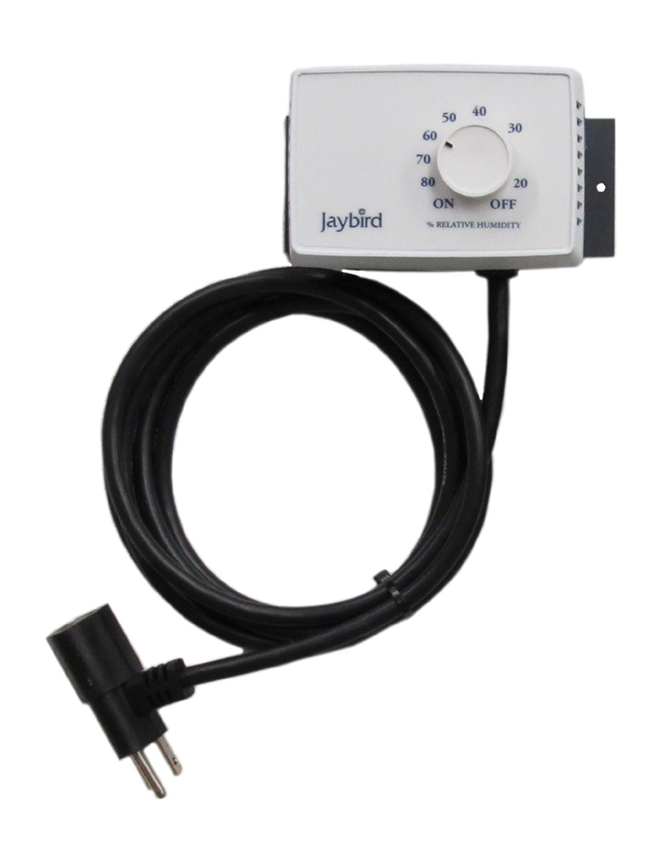

  • Jaybird Humidistat

    Mechanical Humidity Control – Simple, Reliable Operation
    Pre-wired environmental controller for hanging sump and self-contained units.

    Designed for straightforward operation, this mechanical humidistat automatically activates the unit when humidity drops below the setpoint, maintaining consistent conditions with simple dial adjustment.

    Programming Difficulty: Level 1 (No Programming Required)

    Pre-wired with plug-in connections for quick installation—no hard wiring required.

    • Controls GT500 and SS-700 units (1400W, 12A @ 115V)
    • Humidity range: 20–80% RH
    • Differential approximately 7%
    • Reliable mechanical sensor with dial control
    • Piggyback plug for quick device connection

    *Available for bulk purchase (labeled or unlabeled).
    Contact manufacturer for pricing and availability.

    XE-36 $92.00

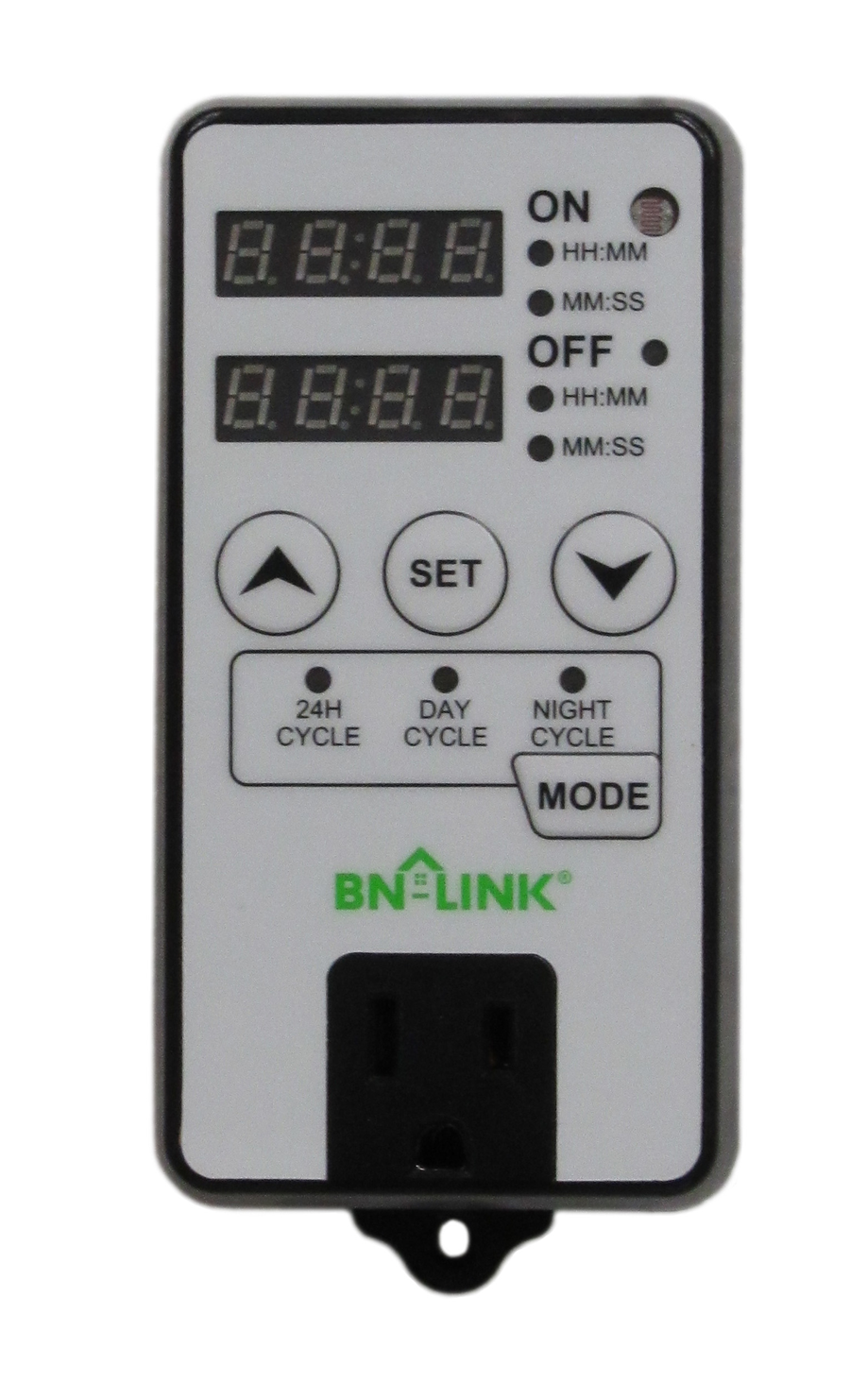

  • Cycle Timer Control

    Cycle Timer Control for High-Humidity Applications
    Designed for applications where humidity levels above 85% RH are desired and repeated short run cycles are needed.

    This pre-wired time-cycle control allows the operator to set repeating on/off intervals from 1 second to 23 hours 59 minutes, providing flexible output control for demanding conditions.

    Programming Difficulty: Level 5 (Moderate)

    Pre-wired with male and female plug connections for quick installation—no hard wiring required.

    • Adjustable cycle range: 1 second to 23 hours 59 minutes
    • Plug-in connections for easy setup
    • NEMA 3X enclosure (125V, 15A)
    CTA-120 $99.50

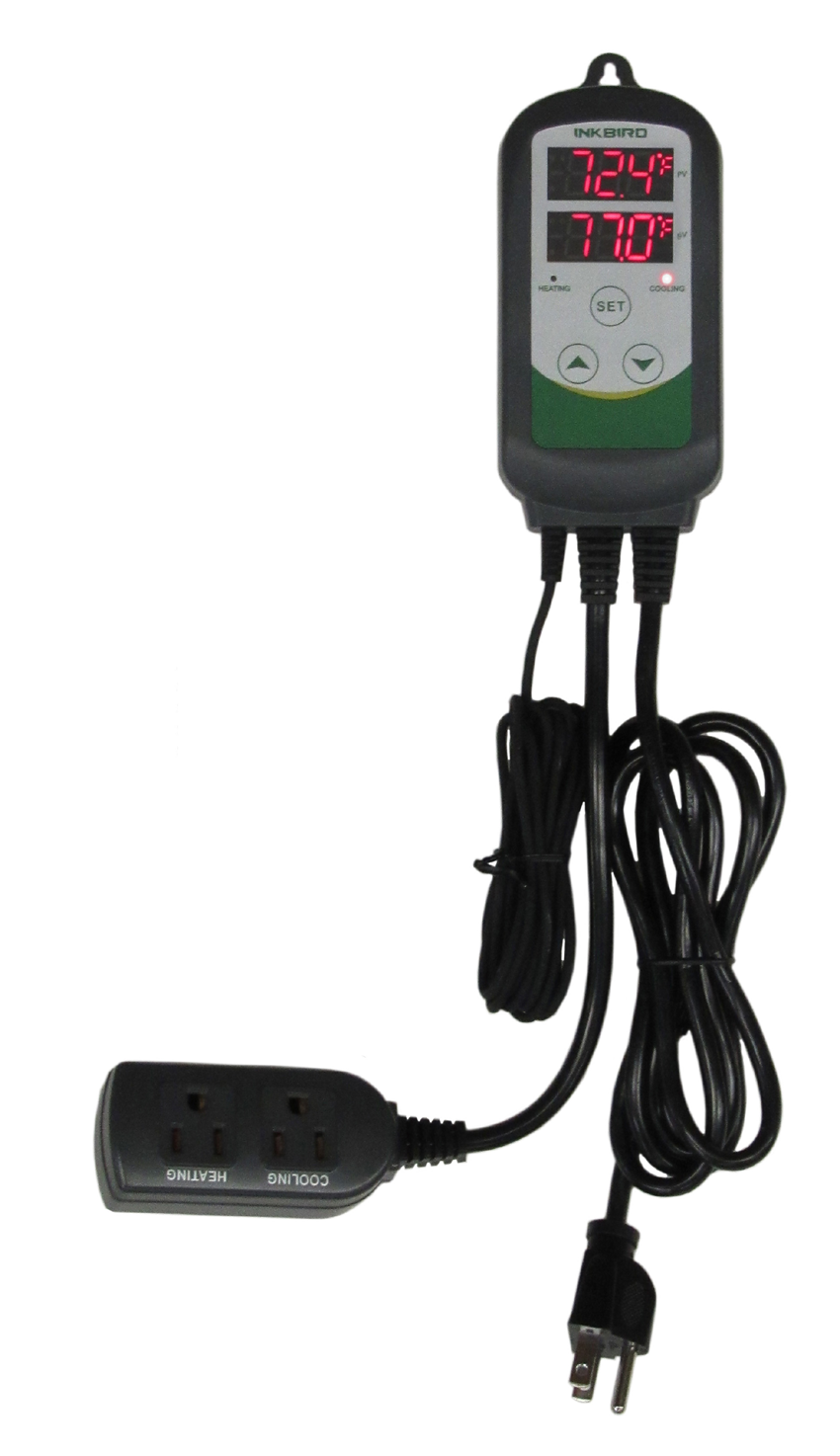

  • Thermostat Control

    Digital Temperature Control for Evaporative Cooling
    Pre-wired controller designed for applications where cooling is the primary objective rather than humidity control.

    This digital thermostat automatically activates the unit when temperatures rise above the setpoint, providing precise temperature control with adjustable differential and real-time display.

    Programming Difficulty: Level 4 (Moderate–Easy)

    Pre-wired with plug-in connections for quick installation—no hard wiring required.

    • Digital controller with display
    • Temperature control range: -56 to 248°F
    • Differential: 3°F
    • Includes 115V piggyback plug for device connection
    THA-120 $123.00
  • Temperature-Humidity Meter

    Ideal for monitoring environments up to 95% Relative Humidity

    The Handheld Thermo-Hygrometer provides accurate, real-time measurement of ambient temperature and relative humidity, making it a valuable tool for monitoring greenhouse and industrial environments where fogging systems are in use.

    With fast response time and reliable performance in high-humidity conditions, this unit helps operators verify system output, track environmental changes, and maintain optimal conditions for plant health and process control.

    Dual readout LCD displays temperature and humidity simultaneously in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C) / ±1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95% RH / ±3%
    • Response time: approximately 60 seconds
    • Power source: CR2032 lithium battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • 24 Hour Timer Control

    24-Hour Timer Control for Scheduled Operation
    Ideal for automating consistent on/off cycles in applications where timed operation is preferred.

    This reliable mechanical timer controls power at selected intervals, making it well suited for dawn-to-dusk or scheduled runtime applications.

    Programming Difficulty: Level 2 (Easy)

    • Controls GT500 and SS-700 units with timed on/off cycles
    • Mechanical 24-hour timer with on/off trippers
    • Minimum 30-minute intervals
    • Rain-tight enclosure, 15A receptacle (115V)
    TA-120 $61.50
