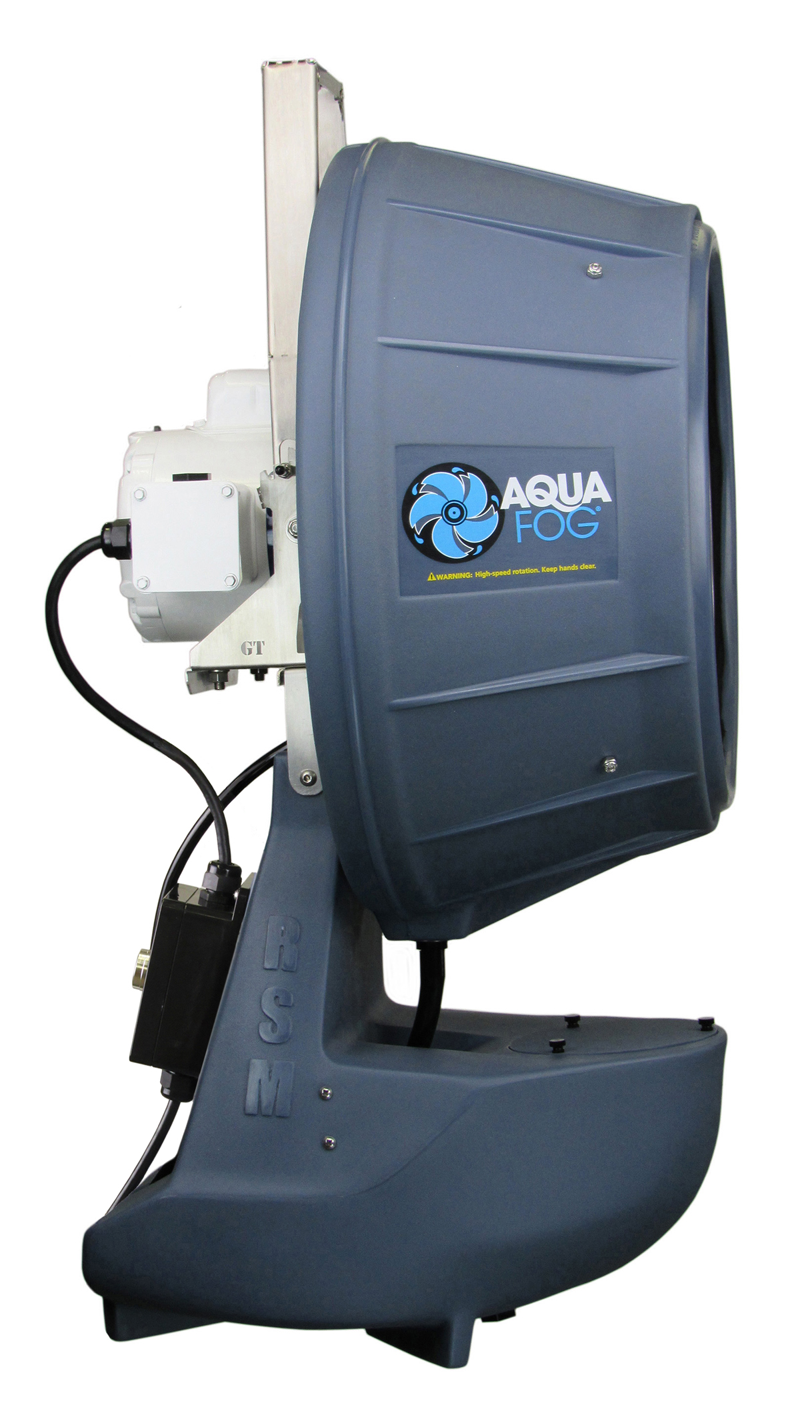

GT 500-HS Hanging Sump

GT 500-HS Fog Fan – Hanging Sump Industrial Humidification &
Cooling System

Manufactured in the USA by Jaybird Manufacturing

The Aquafog GT-500-HS centrifugal fogging system is designed for industrial humidification, evaporative cooling, and environmental control in facilities where a floor drain or continuous water supply may not be available.

The hanging sump configuration recirculates unused water, allowing installation in locations where plumbing or drainage connections are limited.

Unlike high-pressure misting systems or air-assisted nozzle foggers, the GT-500-HS uses Jaybird’s centrifugal atomization technology to produce fine fog particles without clogging nozzles or requiring high-pressure pumps.

The 14-inch industrial atomizer produces fog that evaporates rapidly for effective cooling and humidity control.

Because the GT platform operates with milder air propulsion and quieter airflow, it allows the use of OSHA-compliant safety guards, making it suitable for occupied industrial and agricultural environments.

The GT-500-HS Hanging Sump system includes a recirculating reservoir that captures and reuses excess water.

Water flow is regulated using a quarter-turn ball valve, and the system can be operated continuously or automated using a secondary humidity or temperature controller.

Part of the XE Atomizer Family

• Direct Feed (GT-500)
• Hanging Sump (GT-500-HS) – {This Model}

The GT platform provides reliable fogging performance with quieter airflow and simplified installation, making it ideal for facilities requiring OSHA-compliant equipment and ready-to-install fogging systems.

GT Oscillation Available

Performance Highlights

  • Net Fogging Output: Up to 5.5 GPH
  • Evaporative Cooling Capacity: 44,500 BTU/hr
  • Nozzle-Free Centrifugal Atomizer
  • Recirculating Hanging Sump Tank
  • OSHA-Compliant Safety Guard
  • Ships Fully Assembled
  • Starting at $1,499.00

GT 500 Configuration Comparison

Compare GT 500 configurations to determine the best installation method for your facility.

Feature [GT] Direct Feed [GT] Hanging Sump
Drain Required  Yes No
Recirculating Tank No Yes
Flowmeter Panel Yes No
Shipping Method UPS Freight
Assembly Required None - Fully Assembled None - Fully Assembled
Best For Permanent Install Drain-Free Install

Drain-Free Humidification & Cooling Applications

The Jaybird Aquafog GT-500-HS Hanging Sump system is designed for humidification and evaporative cooling applications where a floor drain or continuous water supply may not be available.

The integrated recirculating sump tank captures and reuses water, allowing reliable fog production in environments that require a self-contained humidification system.

Drain-Free Application

Typical applications include:

  • Greenhouse humidification systems
  • Agricultural and horticulture facilities
  • Mushroom growing operations
  • Industrial spaces without floor drainage
  • Controlled-environment agriculture
  • Warehouses and manufacturing environments

Unlike high-pressure misting systems that rely on small nozzles prone to clogging, the GT 500-HS utilizes centrifugal fogging technology to produce consistent droplet size and dependable long-term operation in demanding environments.

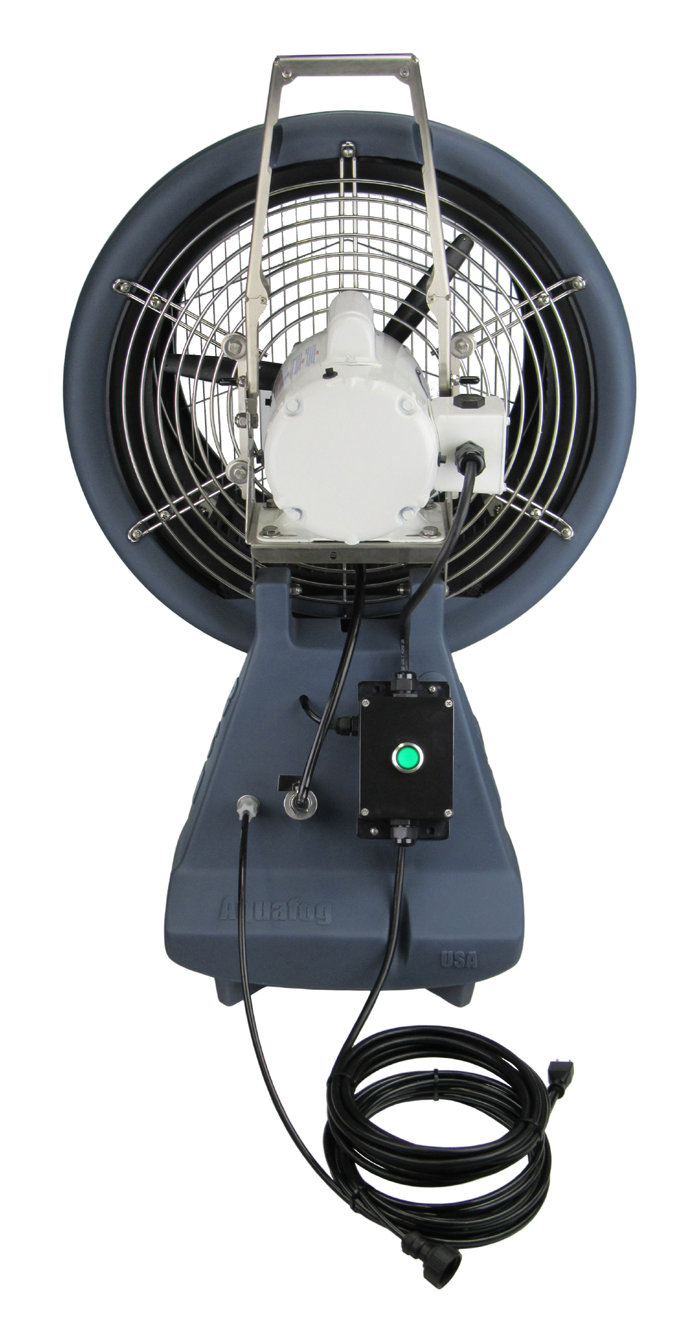

Features & Controls

GT 500-HS units include an internal feed pump, a manual 1/4-turn flow control valve, an illuminated On/Off power switch, and an internal float valve to maintain proper tank water level during operation.

  • Large tank access lid
  • 1/4-turn flow control valve
  • 3 gallon recirculation tank
  • Indoor/Outdoor rated (IP55)
  • Illuminated push-button switch
  • Garden hose connection

The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.

Flow Control Guide

Valve Position Typical Use Fog Character
Full Open Evaporative cooling, greenhouse cooling, concrete curing, mushroom growing Highest output / heavier fog
Mid Open General humidification, horticulture, wine barrel storage, wood/lumber/paper applications Balanced output / general-purpose fogging
Slightly Open Textile humidification, dust suppression, static control, lighter treatment applications Drier / finer fog

Control Tip: Start with a lower valve setting and increase flow only as needed. This helps maintain finer fog quality and reduces excess wetting.

Hydrophilic Front Guard

The front guard meets OSHA safety regulations and is specially processed to create hydrophilic properties, allowing water to wick down the guard and back into the housing rather than bead and be thrown outward by the spinning atomizer.

  • Meets OSHA Safety Regulations
  • 304 Stainless Steel Construction
  • Hydrophilic Surface Treatment for Water Wicking

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Overall Dimensions:

Diameter 21 in / 53.5 cm

Depth 17.5 in / 44.5 cm

Height 25 in / 63.5 cm
Unit Weight:

38 lbs / 17.2 kg

Propulsion Distance:

25 - 30 ft / 7.6 - 9.1 m
Noise @ 10 ft:

68 - 70 dB(A)
Average Particle Size:

5-10 microns @ low volume

25 microns @ high volume
Net Fogging Output:

up to 5.5 GPH - 60Hz

up to 15 LPH - 50Hz
CFM:

1,800 @ 60Hz

1,440 @ 50Hz
Cooling Capability:

44,500 Btu/h @ 60Hz

35,500 Btu/h @ 50Hz
Tank Capacity:

3 gallon (US) / 11.3 liter
Operation:

Continuous duty capability
Energy Consumption:

1/4 HP - 3.6 amps @ 115V
1/5 HP - 2.3 amps @ 240V 50Hz
Shipping Weight:

55 lbs / 25 kg
Shipping Dimensions:

19” x 24” x 38”
48cm x 61cm x 97cm
Environment:

Endures temperatures from
33° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistant
Country of Origin:

USA
  • Digital Humidistat Control

    Environmental Controller w/ Humidity Sensor

    A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range.

    - Not recommended for prolonged use above 90% RH.

    • Fast-acting Digital Sensor
    • Range 5-99% RH
    • Rated up to 1200W (10A @ 115V)
    • Over-Humidity and Sensor Fault Alarm

    DH-36 $92.00
  • Jaybird Humidistat

    Dependable, Easy to Use
    This pre-wired humidistat is ideal for control in applications under 80% RH.
    Controller incorporates a mechanical-action sensor with simple dial control.
    • Range 20-80% RH
    • Differential approximately 7%
    • Rated up to 1400W (12A @ 115V)
    • Piggy-back plug, device connect

    *This item is available for bulk purchases both labeled and unlabeled.
    Contact manufacturer directly for price and availability.

    110-250V 60/50Hz
    XE-36 $92.00
  • Cycle Timer Control

    Want to maintain humidity above 85%, try using the Cycle-Timer control. Cycle setting range: from 1 sec. to 23:59 min.

    • Male/Female Plug-in Connections
    • 125Volt 15 Amp - Nema 3X

    115V 60Hz
    CTA-120 $99.50
  • Thermostat Control

    If your primary interest is indoor evaporative cooling, then this pre-wired control is what you need to automate your unit.

    • Digital Controller with Display
    • Control range -56 to 248º F
    • Differential 3º F
    • Includes 115V piggy-back plug

    115V 60Hz
    THA-120 $123.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • 24 Hour Timer Control

    For automating on/off cycles

    This reliable mechanical timer turns power on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 115V - 15A receptacle.

    • Two sets of on/off trippers provided
    • Minimum 30 minute intervals

    115V 60Hz
    TA-120 $61.50

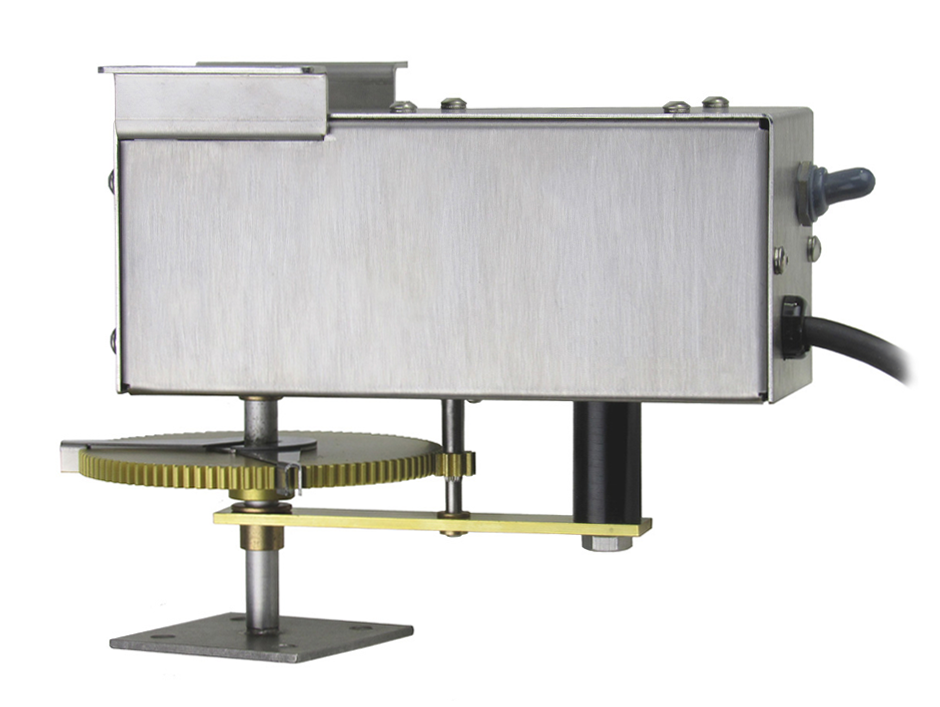

  • XE 360 Oscillator

    Increase Coverage & Circulation

    Ideal for interior applications and when hanging for permanent installation, consider the use of an Oscillator. The sweeping action of a fogging unit not only alleviates droplet collisions and fallout, but also enhances air circulation. The steady, continuous movement provides for uniform coverage patterns up to 70 feet in diameter. This allows the operator to fog at higher output levels than a stationary unit operating under equal conditions, resulting in less fallout and improved dryness underneath the fog pattern.

    • 304 Stainless Steel Enclosure
    • Dwell-free Sweeps from 15º to 360º
    • Full 360º Rotation in 3 Minutes
    • On/Off Toggle Switch
    • Durable 75 Pound Weight Capacity
    XE—360 $339.00
