Direct Feed

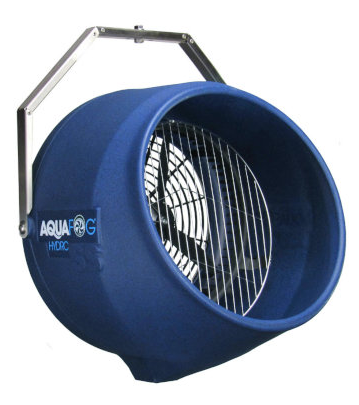

SS 700-DF Fog Fan – Direct Feed
Industrial & Greenhouse
Humidification System

Manufactured in the USA by Jaybird Manufacturing

The Hydro SS 700 direct-feed fogging system is our smallest and quietest atomizer, engineered for dependable humidification, evaporative cooling, and spot cooling in commercial, agricultural, and residential environments.

Unlike high-pressure misting systems that rely on nozzles and pumps, the SS 700-DF connects to an ordinary water supply and uses centrifugal atomization to produce tiny particles that evaporate quickly for efficient cooling and humidity control.

The Direct Feed configuration is regulated by a stainless-steel visual flowmeter panel and can be operated continuously or automated using a secondary controller. Its stainless-steel construction and UV-stabilized polymers make it well suited for greenhouse and other harsh-environment applications.

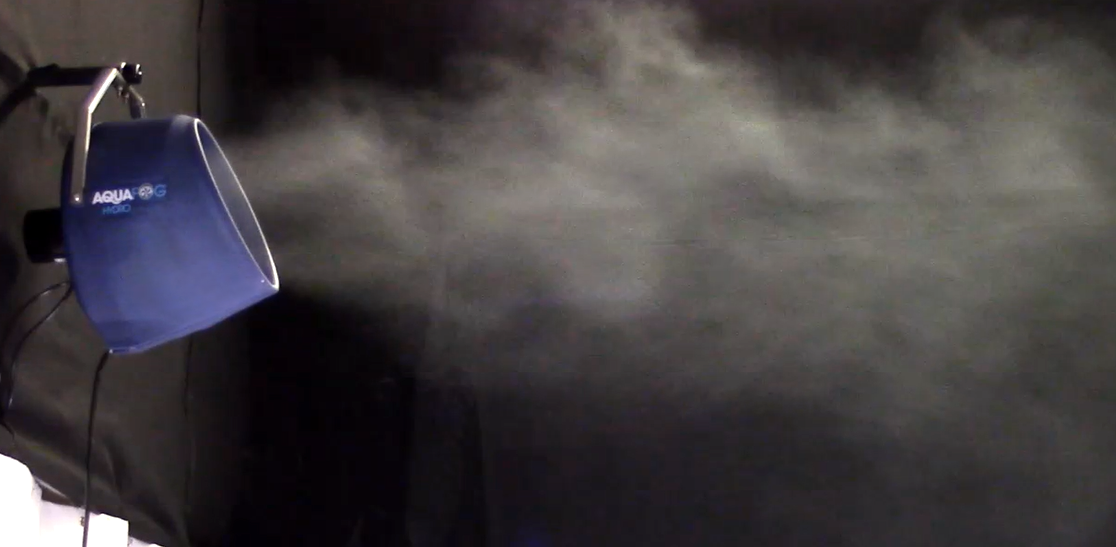

High-Output Fogging in Action

  • No nozzle clogging or high pressure pumps
  • Projects fog into the air for quick evaporation
  • Designed for small-mid-area cooling, humidification,
    and chemical fogging

Provides reliable fog distribution for cooling, humidification, and
environmental control in industrial and greenhouse environments

Part of the SS Atomizer Family

Performance Highlights

  • SST Flowmeter Panel (5 GPH)
  • Fogging Output: Up to 3.7 GPH
  • Low Noise | 12' Fog Propulsion
  • OSHA Guard
  • 30,000 Btu/h Evaporative Cooling
  • Arrives Fully Assembled
  • Includes 20' Water Line, 14' Power Cord, and 12' Drainage Line

SS 700 Configuration Comparison

Compare SS 700 configurations to determine the best installation method for your facility.

Feature [SS] Direct Feed [SS] Bench Top [SS] Hanging Sump
Drain Required Yes No No
Recirculating Tank No Yes Yes
Flowmeter Panel Yes No No
Shipping Method UPS UPS UPS
Assembly Required None - Fully Assembled None - Fully Assembled None - Fully Assembled
Best For Permanent Install Drain-Free Install Drain-Free Install

Industrial Humidification & Cooling Applications

The Hydro SS 700-DF is designed for compact, reliable humidification and cooling where quiet operation, simple installation, and consistent fog production are important. Its direct-feed design makes it an excellent fit for permanent installations using a standard pressurized water supply.

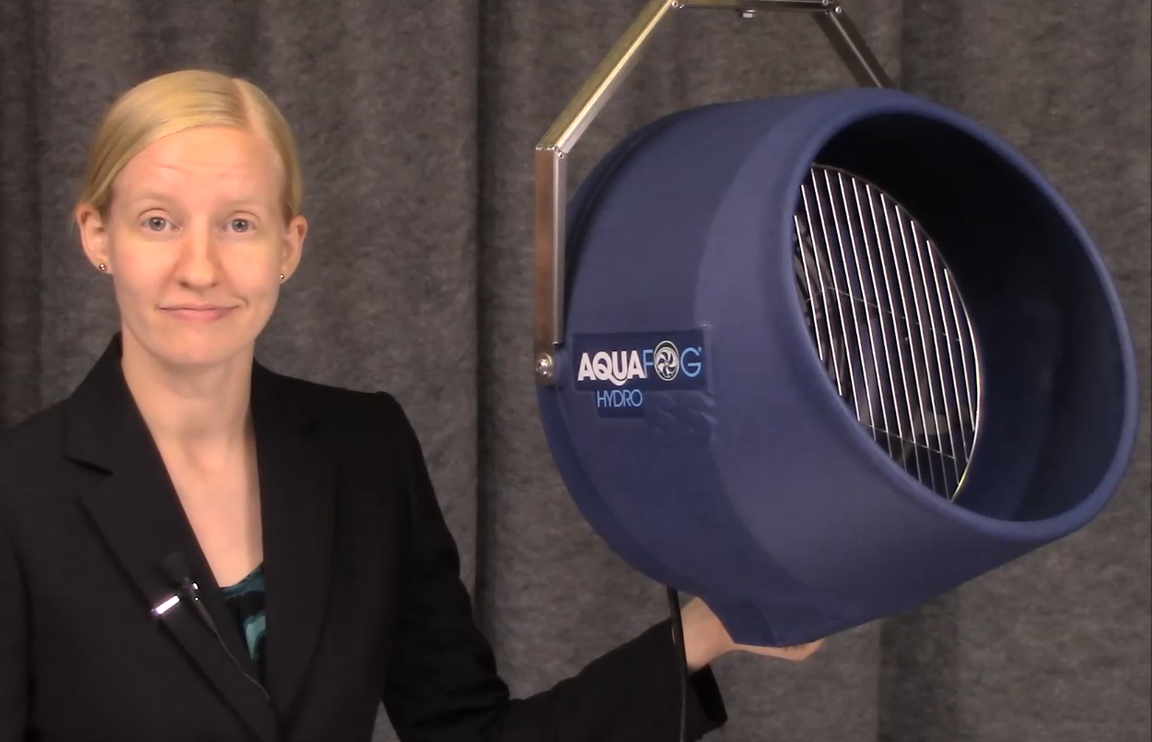

Compact, lightweight design allows easy
handling and flexible installation

Typical applications include:

  • Agriculture and greenhouse humidity control
  • Food packing and processing areas
  • Environmental humidity control systems
  • Commercial and residential evaporative cooling
  • Spot cooling for indoor and outdoor work areas

The SS 700-DF delivers fine fog production without the complexity of high-pressure nozzles, making it a practical solution for users who need dependable performance in a small-format atomizer.

SS-700-DF        115V 60Hz 1Ph                 $579.00

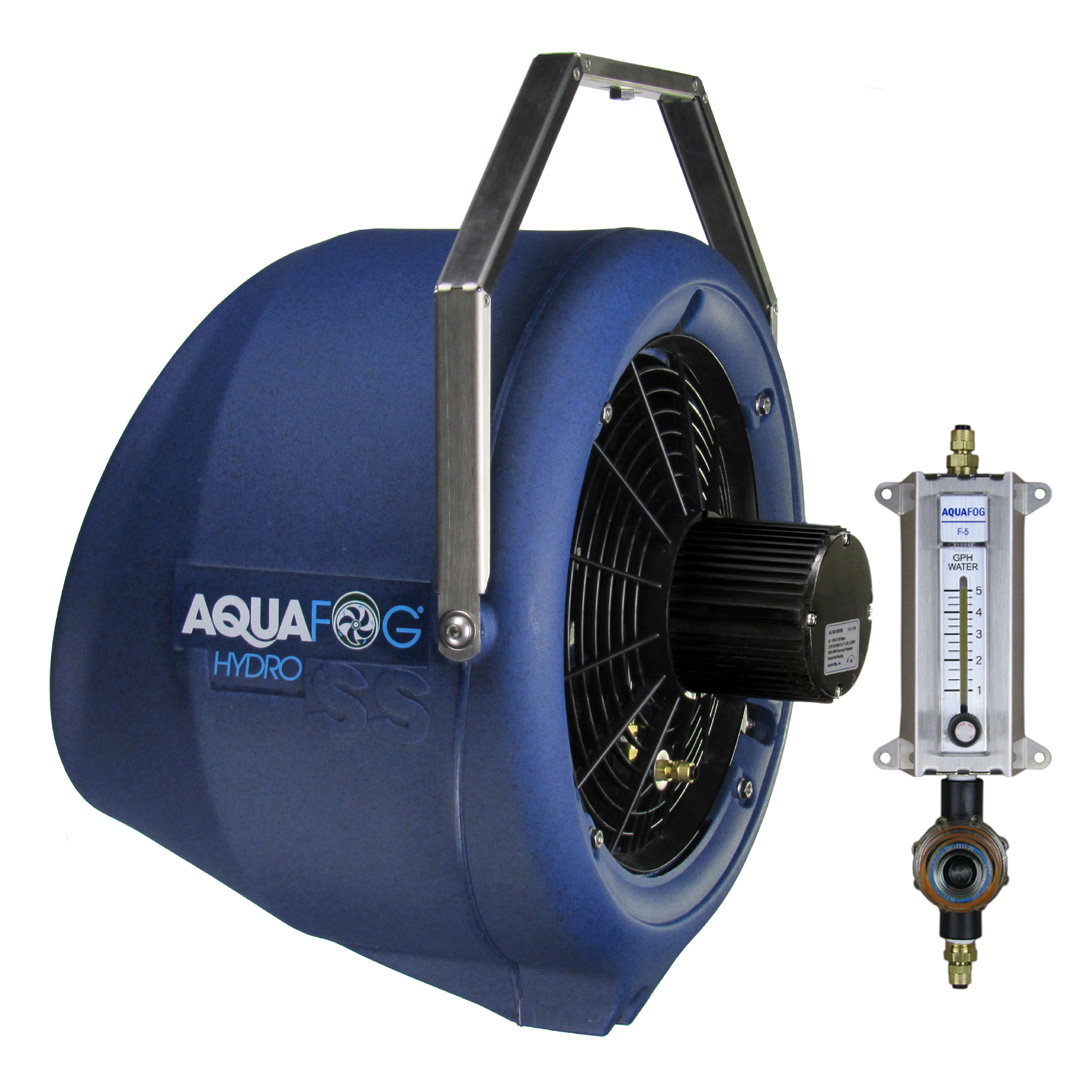

SST Flowmeter Panel

SS 700-DF units include a stainless-steel visual flowmeter panel.

The flowmeter panel connects to a pressurized water supply and allows the operator to monitor and adjust the water feed rate going to the SS 700-DF atomizer. A precision needle valve regulates the flow, while the clear polycarbonate meter provides easy visual confirmation of system operation.

The SS 700-DF uses a 1 to 5 GPH flowmeter, matched to the operating range of the unit for reliable low-flow performance and fine fog production. Requires a pressurized water supply (10-100 PSI).

  • 1 to 5 GPH flowmeter scale
  • Up to 3.7 GPH net fogging output
  • Precision needle valve flow control
  • In-line strainer included

The 1 to 5 GPH panel is sized to keep the SS 700-DF operating in an effective control range for dependable fine-fog performance.

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Fogging Capability: Up to 3.7 gal per hour
CFM: 980
Cooling Capability: 29,500 Btu/h
Motor: 1/20 HP, 115V, 60Hz
Energy Consumption: 1.5A @ 115V
Noise @ 10 ft distance: 63 dB(A) @ 10 ft
Average Particle Size: 25 microns
Weight: 10 lbs
Unit Dimensions:

Width 16"

Depth 17"

Height 20"
Hardware: 304 (18/8) stainless steel
Environment:

Endures temperatures from
33° to 160°

Indoors / outdoors

Humidity to 85% RH

UV stabilized & impact resistant
Shipping Weight:

19 lbs
Box Dimensions:

19" x 19" x 19"
Country of Origin:

USA
  • Digital Humidistat Control - DF

    Environmental Controller w/ Humidity Sensor & Solenoid Package
    A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range.

    - Not recommended for prolonged use above 90% RH.

    • Fast Acting Digital Sensor
    • Range 5-99% RH
    • Includes Water Solenoid for Direct Feed
    • Rated up to 1200W (10A @ 115V)
    • Over-Humidity and Sensor Fault Alarm
    DH-36-DF $180.00
  • Jaybird Humidistat - DF

    Dependable, Easy to Use
    This pre-wired humidistat is ideal for control in applications under 80% RH.
    Controller incorporates a mechanical-action sensor with simple dial control.

    • Range 20-80% RH
    • Includes Water Solenoid for Direct Feed
    • Rated up to 1400W (12A @ 115V)
    • Piggy-back plug, device connect
    XE-36-DF $174.00
  • Cycle Timer Control - DF

    Want to maintain high humidity above 80%, then this pre-wired time-cycle control is what you may need. Select time cycles ranging from 1 second to 24 minutes. Includes dual outlet adapter.

    • Water-tight Nema 4X
    • Includes Water Solenoid

    115V 60Hz
    CTA-120-DF $195.00
  • Thermostat Control - DF

    If your primary interest is indoor evaporative cooling, this pre-wired control is what you need to automate your SS 700-DF. Includes piggy-back plug.

    • Water-tight Nema 4X
    • Includes Water Solenoid
    • Control range 40-110º F
    • Differential 2º F
    THA-120-DF $195.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • 24 Hour Timer Control - DF

    For automating on/off cycles

    This reliable mechanical timer with water solenoid turns power and water on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 15A receptacle, 115V.

    • Two sets of on/off trippers provided
    • Minimum 30 minute intervals

    115V 60Hz
    TC-120-DF $157.00
  • Water Solenoid - DF

    Control water flow, electrically

    1. Use with preexisting control systems.
      Connect directly to the same power supply to automate water flow (on/off) in conjunction with the fan.
    2. Safeguard against power outage.
      If operating fogging units manually (no control system), a water solenoid installed in the unit’s water supply line will shut off water flow in the event of a power outage.
    • Mounting bracket | 6′ power cord with plug, 115V
    • NEMA 4 Water-tight components
    • ¼″ OD tubing connections
    SV-120-DF $98.00
