Hydro SS 700-HS Fog Fan – Hanging Sump Industrial Humidification & Environmental Conditioning System

Manufactured in the USA by Jaybird Manufacturing

The Hydro SS 700-HS fogging system is our smallest and quietest atomizer, engineered for dependable humidification, evaporative cooling, and spot cooling in commercial, agricultural, and residential environments.

Unlike high-pressure misting systems that rely on nozzles and pumps, the SS 700-HS connects to an ordinary water supply and uses centrifugal atomization to produce tiny particles that evaporate quickly for efficient cooling and humidity control.

The Hanging Sump configuration requires no drainage line because its integrated sump tank recycles waste water. The unit is regulated by a quarter-turn ball valve and can be operated continuously or automated using a secondary controller.

Its stainless-steel construction and UV-stabilized polymers make it well suited for greenhouse and other harsh-environment applications.

Part of the SS Atomizer Family

Performance Highlights

  • Net Fogging Output: Up to 3.7 GPH
  • Low Noise | 12' Fog Propulsion
  • OSHA Guard
  • 30,000 Btu/h Evaporative Cooling
  • Arrives Fully Assembled
  • Includes 20' Water Line and 14' Power Cord
  • No Drainage Line Required

SS 700 Configuration Comparison

Compare SS 700 configurations to determine the best installation method for your facility.

Feature [SS] Direct Feed [SS] Bench Top [SS] Hanging Sump
Drain Required Yes No No
Recirculating Tank No Yes Yes
Flowmeter Panel Yes No No
Shipping Method UPS UPS UPS
Assembly Required None - Fully Assembled None - Fully Assembled None - Fully Assembled
Best For Permanent Install Drain-Free Install Drain-Free Install

Industrial Humidification & Cooling Applications

The Hydro SS 700-HS is designed for compact, reliable humidification and cooling where quiet operation, simple installation, and consistent fog production are important. Its hanging sump design makes it an excellent fit for drain-free installations using a standard pressurized water supply.

Typical applications include:

  • Agriculture and greenhouse humidity control
  • Food packing and processing areas
  • Environmental humidity control systems
  • Commercial and residential evaporative cooling
  • Spot cooling for indoor and outdoor work areas

The SS 700-HS delivers fine fog production without the complexity of high-pressure nozzles, making it a practical solution for users who need dependable performance in a compact, recirculating atomizer system.

SS-700-HS        115V 60Hz 1Ph                 $695.00

Features & Controls

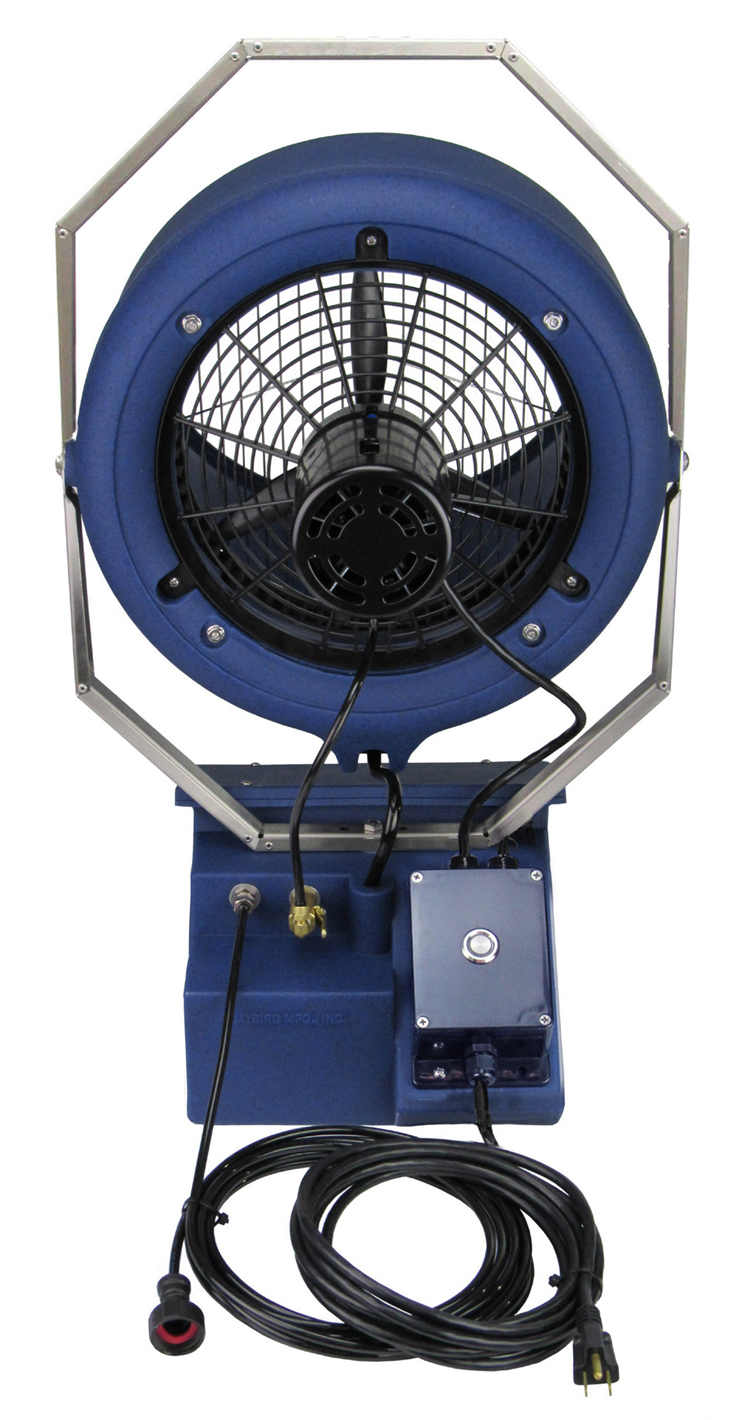

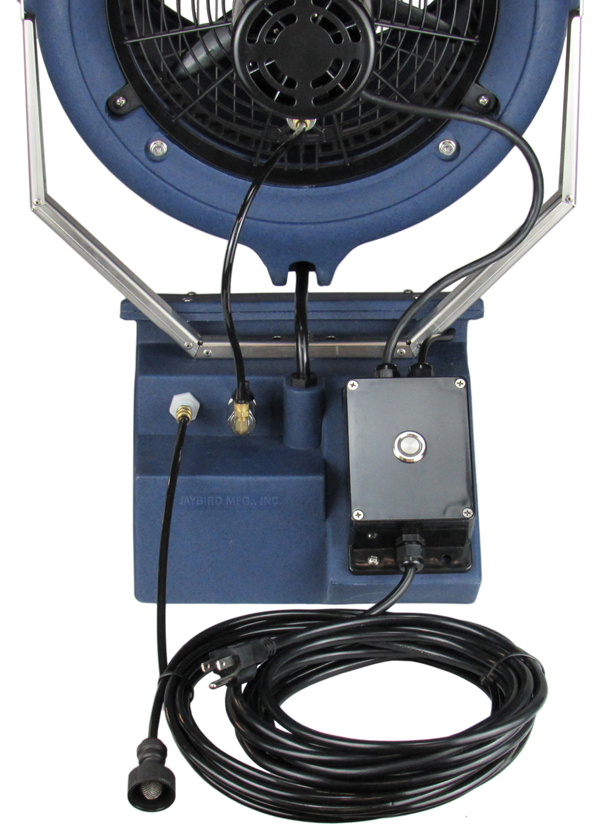

SS 700-HS units include an internal feed pump, a manual 1/4-turn flow control valve, an illuminated On/Off power switch, and an internal float valve to maintain proper tank water level during operation.

  • Large tank access lid
  • 1/4-turn flow control valve
  • Recirculation tank
  • Indoor/Outdoor rated (IP55)
  • Illuminated push-button switch
  • Garden hose connection

The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Fogging Capability: Up to 3.7 gal per hour
CFM: 980
Cooling Capability: 29,500 Btu/h
Motor: 1/20 HP, 115V, 60Hz
Energy Consumption: 1.6A @ 115V
Noise @ 10 ft distance: 63 dB(A) @ 10 ft
Average Particle Size: 25 microns
Weight: 18 lbs
Unit Dimensions:

Width 16"

Depth 18"

Height 28"
Hardware: 304 (18/8) stainless steel
Environment:

Endures temperatures from
33° to 160°

Indoors / outdoors

Humidity to 85% RH

UV stabilized & impact resistant
Shipping Weight:

28 lbs
Box Dimensions:

25" x 20" x 21"
Country of Origin:

USA
  • Digital Humidistat Control

    Environmental Controller w/ Humidity Sensor

    A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range.

    - Not recommended for prolonged use above 90% RH.

    • Fast-acting Digital Sensor
    • Range 5-99% RH
    • Rated up to 1200W (10A @ 115V)
    • Over-Humidity and Sensor Fault Alarm

    DH-36 $92.00
  • Jaybird Humidistat

    Dependable, Easy to Use
    This pre-wired humidistat is ideal for control in applications under 80% RH.
    Controller incorporates a mechanical-action sensor with simple dial control.
    • Range 20-80% RH
    • Differential approximately 7%
    • Rated up to 1400W (12A @ 115V)
    • Piggy-back plug, device connect

    *This item is available for bulk purchases both labeled and unlabeled.
    Contact manufacturer directly for price and availability.

    110-250V 60/50Hz
    XE-36 $92.00
  • Cycle Timer Control

    Want to maintain humidity above 85%, try using the Cycle-Timer control. Cycle setting range: from 1 sec. to 23:59 min.

    • Male/Female Plug-in Connections
    • 125Volt 15 Amp - Nema 3X

    115V 60Hz
    CTA-120 $99.50
  • Thermostat Control

    If your primary interest is indoor evaporative cooling, then this pre-wired control is what you need to automate your unit.

    • Digital Controller with Display
    • Control range -56 to 248º F
    • Differential 3º F
    • Includes 115V piggy-back plug

    115V 60Hz
    THA-120 $123.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • 24 Hour Timer Control

    For automating on/off cycles

    This reliable mechanical timer turns power on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 115V - 15A receptacle.

    • Two sets of on/off trippers provided
    • Minimum 30 minute intervals

    115V 60Hz
    TA-120 $61.50
