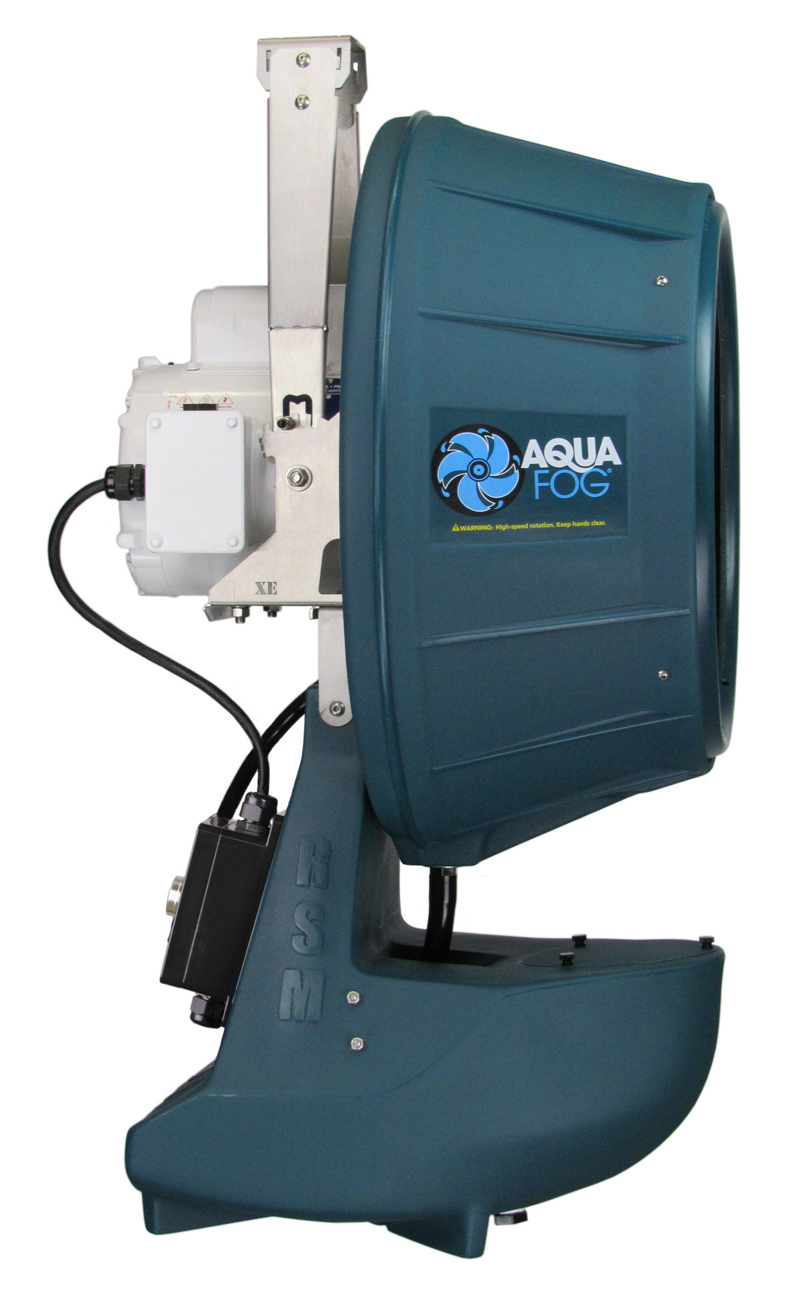

XE 2000-HS Hanging Sump

XE 2000 Fog Fan – Hanging Sump
Industrial Humidification &
Evaporative Cooling System

Manufactured in the USA by Jaybird Manufacturing

The Aquafog XE-2000-HS centrifugal fogging system is Jaybird’s largest atomizer, engineered for high-output industrial humidification, evaporative cooling, and environmental control in greenhouse and industrial environments requiring long projection distance and consistent fog volume.

The hanging sump configuration recirculates unused water, allowing installation in facilities where a drain connection is unavailable

Unlike high-pressure nozzle systems or spinning disc foggers, the XE utilizes a nozzle-free centrifugal atomizer that helps eliminate clogging while delivering high-volume, ultra-fine fog dispersion.

The Hanging Sump configuration requires no drainage line. The integrated sump tank recycles waste water, making the XE 2000-HS ideal for facilities where drain access is limited or where plumbing installation is not practical.

XE 2000 systems produce tiny particles that evaporate quickly for humidification and evaporative cooling. Output is regulated by a quarter-turn ball valve and can be operated continuously or automated using a secondary controller.

Indoor/Outdoor applications include: Humidification, Evaporative Cooling, and Chemical Fogging.

Stainless-steel fabrication and UV-stabilized polymers allow for greenhouse and harsh-environment use. HS includes 20’ of water line and 15’ power.

Delivers powerful high-volume fog for large-area cooling and
humidification in industrial and agricultural environments.

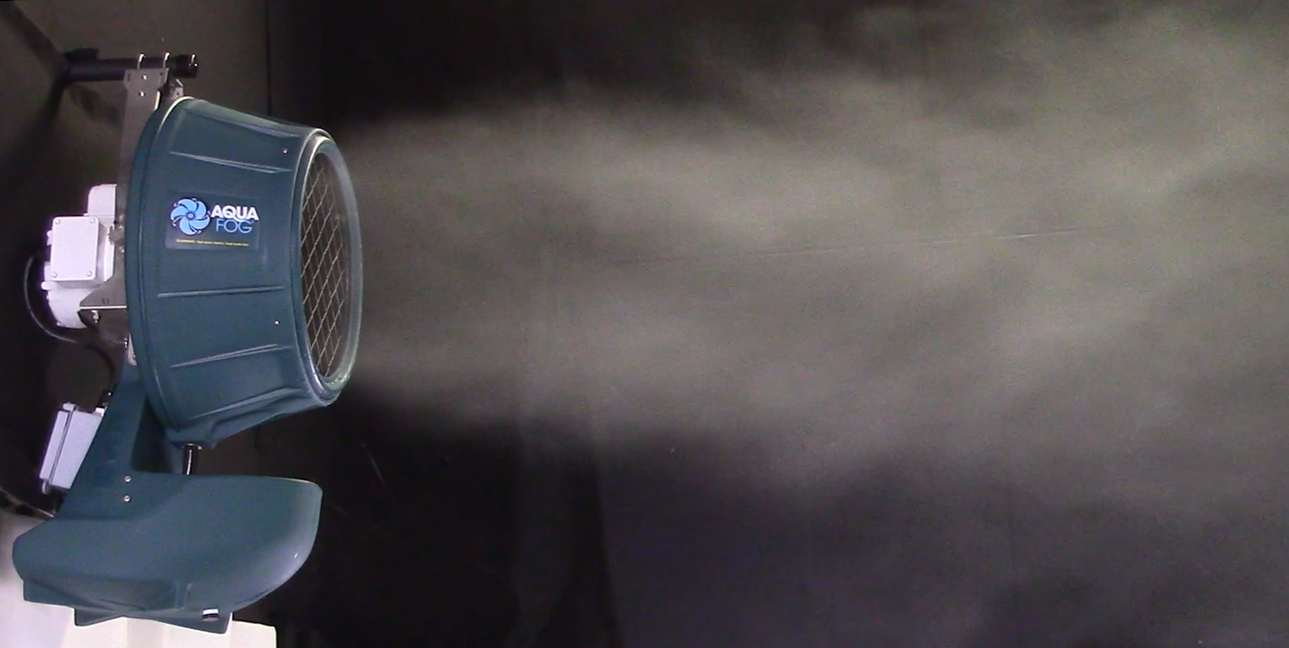

High-Output Fogging in Action

  • No nozzle clogging or high pressure pumps
  • Projects fog high into the air for better evaporation
  • Designed for large-area cooling, humidification, and chemical fogging

Part of the XE Atomizer Family

• Direct Feed (XE 2000)
• Hanging Sump (XE 2000-HS)
   {This Model}
• Explosion-Proof (XE 2000-EXP)

The XE platform represents our largest atomizer class, designed for maximum coverage and industrial-scale output.

Drainage-free fogging for large-area
 industrial and agricultural environments.

Performance Highlights

  • Net Fogging Output: Up to 14.8 GPH
  • Evaporative Cooling Capacity: 119,800 BTU/hr
  • Nozzle-Free Centrifugal Atomizer
  • 3 Gallon Recirculating Sump Tank
  • Arrives Fully Assembled
  • Starts at $1,629.00

XE 2000 Configuration Comparison

Compare XE 2000 configurations to determine the best installation method for your facility.

Feature [XE] Direct Feed [XE] Hanging Sump [XE] Explosion-Proof
Drain Required Yes No Yes
Recirculating Tank No Yes No
Flowmeter Panel Yes No Yes
Shipping Method UPS - Motor Ships Separate Freight UPS - Motor Ships Separate
Assembly Required Motor & Blade Installation None - Fully Assembled Motor & Blade Installation
Best For Permanent Install Drain-Free Install Classified Areas

Drain-Free Humidification & Cooling Applications

The Jaybird Aquafog XE-2000-HS Hanging Sump system is designed for humidification and evaporative cooling applications where a floor drain or continuous water supply may not be available. The integrated recirculating sump tank captures and reuses water, allowing reliable fog production in environments that require a self-contained humidification system.

This configuration is commonly used in greenhouses, horticulture facilities, mushroom growing operations, and other agricultural environments where maintaining proper humidity levels is critical for plant health and production.

Arrives ready to install

Typical applications include:

  • Greenhouse humidification systems
  • Horticulture and propagation facilities
  • Mushroom growing operations
  • Agricultural and controlled-environment farming
  • Facilities without floor drainage
  • Industrial spaces requiring self-contained humidification

By combining Jaybird’s nozzle-free centrifugal fogging technology with a recirculating sump tank, the XE-2000-HS provides dependable humidification and cooling performance while minimizing water waste and installation requirements.

Features & Controls

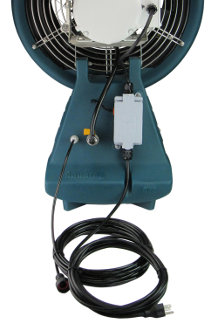

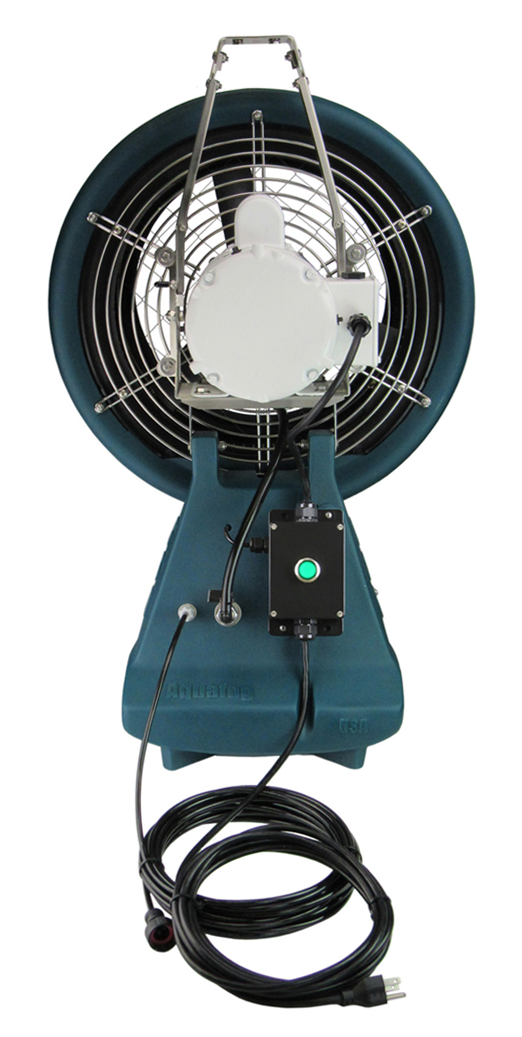

XE 2000-HS units include an internal feed pump, a manual 1/4-turn flow control valve, an illuminated On/Off power switch, and an internal float valve to maintain proper tank water level during operation.

  • Large tank access lid
  • 1/4-turn flow control valve
  • 3 gallon recirculation tank
  • Indoor/Outdoor rated (IP55)
  • Illuminated push-button switch
  • Garden hose connection

The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.

Flow Control Guide

Valve Position Typical Use Fog Character
Full Open Evaporative cooling, greenhouse cooling, concrete curing, mushroom growing Highest output / heavier fog
Mid Open General humidification, horticulture, wine barrel storage, wood/lumber/paper applications Balanced output / general-purpose fogging
Slightly Open Textile humidification, dust suppression, static control, lighter treatment applications Drier / finer fog

Control Tip: Start with a lower valve setting and increase flow only as needed. This helps maintain finer fog quality and reduces excess wetting.

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.


See comparisons of Jaybird atomizers in action (1:17 video)

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

[XE] Atomizer
[GT] Atomizer
[SS] Atomizer

Jaybird Atomizer Platform Comparison

Feature XE Atomizer GT Atomizer SS Atomizer
Motor Size 1/2 HP 1/4 HP 1/20 HP
Atomizer Diameter 14 Inch 14 Inch 10 Inch
Fog Output Up to 16 GPH Up to 6 GPH Up to 3.5 GPH
Noise @ 10’ 72 dB(A) 70 dB(A) 63 dB(A)
Average Particle Size 2 to 25 Microns 5 to 25 Microns 15 to 35 Microns
CFM 2,500 - 3,000 1,200 - 1,800 800 - 980
Propulsion Distance 30 - 35 Feet 25 - 30 Feet 10 - 12 Feet
Best For Industrial / Agriculture Mid-Size Facilities Small Areas

Jaybird’s Centrifugal Atomizers are powered by industrial grade wash-down-duty motors. Designed for wet applications (IP 55). Systems are Indoor/Outdoor and capable for continuous-duty

Overall Dimensions:

Width 21 in / 53.5 cm

Depth 17.5 in / 44.5 cm

Height 33.4 in / 85 cm
Unit Weight:

50 lbs / 22.7 kg

Propulsion Distance:

30 - 35 ft / 9.1 - 10.5 m
Noise @ 10 m:

72 dB(A) - 60Hz

70 dB(A) - 50Hz
Average Particle Size:

5-10 microns @ low volume

20 microns @ mid volume

25 microns @ high volume
Net Fogging Output:

up to 14.8 GPH - 60Hz

up to 45 LPH - 50Hz
CFM:

3,000 - 60Hz

2,500 - 50Hz
Cooling Capability:

119,800 Btu/h @ 60Hz

95,800 Btu/h @ 50Hz
Tank Capacity:

3 gallon (US) / 11.3 liter
Operation:

Continuous duty capability
Energy Consumption:

1/2 HP - 7.8 amps @ 115V

1/3 HP - 4.4 amps @ 240V 50Hz
Shipping Weight:

67 lbs / 30.4 kg
Box Dimensions:

19" x 24" x38"

48 cm x 61 cm x 97 cm
Environment:

Endures temperatures from
33° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistant
Country of Origin

USA
  • Digital Humidistat Control

    Environmental Controller w/ Humidity Sensor

    A precision controller suitable for many applications. Control is very fast
    acting, displays humidity levels and has programmable differential range.
    - Not recommended in prolonged use above 90% RH.

    • Fast-acting Digital Sensor
    • Range 5-99% RH
    • Rated up to 1800W (15A @ 115V)
    • Over-Humidity and Sensor Fault Alarm

    DH-120 $132.00
  • Humidistat Control

    Dependable, Easy to Use


    Ideal for control in applications under 80% RH. Controller incorporates a
    mechanical-action humidistat sensor along with a starter contactor. For
    reliable start of high inrush loads of the devices being automated.


    • Range 20-80% RH
    • Differential approximately 7%
    • Rain-tight Enclosure
    • 30A Contactor DPST

    H-120 $184.00
  • 24-Hour Timer Control

    Excellent for controlling long operation cycles

    If your primary interest is long cycle operation, the basic 24-hour timer control is a reliable way to automate the XE mobile units.

    • Supplied with male and female cord set.
    • Rain-tight Nema 3 enclosure
    • Adjustable 15 minute cycles
    • 115V 60Hz
    TC-180 $164.00
  • Thermostat Control

    If your main interest is evaporative cooling

    If your interest is in evaporative cooling, the thermostat control is the best choice to automate your XE mobile units.

    • Water-tight Nema 4X
    • Differential 3º F
    • Control range 40-110º F
    • 100- 250V 50/60Hz
    TH-180 $154.00
  • XE 360 Oscillator

    Increase Coverage & Circulation

    Ideal for interior applications and when hanging for permanent installation, consider the use of an Oscillator. The sweeping action of a fogging unit not only alleviates droplet collisions and fallout, but also enhances air circulation. The steady, continuous movement provides for uniform coverage patterns up to 70 feet in diameter. This allows the operator to fog at higher output levels than a stationary unit operating under equal conditions, resulting in less fallout and improved dryness underneath the fog pattern.

    • 304 Stainless Steel Enclosure
    • Dwell-free Sweeps from 15º to 360º
    • Full 360º Rotation in 3 Minutes
    • On/Off Toggle Switch
    • Durable 75 Pound Weight Capacity
    XE-360 $339.00
  • Economy Traveling Floor Stand

    If securing Turbo XE Fans overhead is not practical, this floor stand allows for an affordable solution. Capable of stationary or oscillating set-ups. Stands are constructed of heavy-wall pipe and prime grade lumber.

    • Fully adjustable boom
    • 10” molded wheels
    XE-100 $195.00
  • Wall Mount

    The Wall Mount Support provides adjustable height along its 30" vertical length. The cross-support extends 21", accommodating for 360° sweep rotation.

    • Supplied with Lag bolts and masonry anchors
    XE-W $117.00
  • Ceiling Mount

    Support has 36" horizontal length

    • Supplied with Lag bolts
    XE-C $73.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
