HRSM

XE HRSM 2000 Mobile Fog Fan –
Industrial Humidification
& Evaporative Cooling System

Manufactured in the USA by Jaybird Manufacturing

The Aquafog XE HRSM-2000 mobile fogging system combines Jaybird’s high-output XE centrifugal atomizer with a rugged, self-contained mobile platform designed for demanding industrial and agricultural environments. Engineered for industrial humidification, evaporative cooling, dust suppression, and chemical fogging, the HRSM provides portable high-volume fog production wherever environmental control is required.

Unlike high-pressure nozzle systems or spinning disc foggers, the XE HRSM utilizes Jaybird’s nozzle-free centrifugal atomizing technology, producing extremely fine fog while eliminating clogging nozzles and high-pressure pumps.

The HRSM includes an 18-gallon integrated supply tank, pivoting fogging head, and wheeled mobile chassis, allowing operators to quickly deploy powerful fogging performance anywhere it is needed.

Water flow is controlled by a quarter-turn ball valve, allowing operators to easily regulate fog output depending on application needs.

Part of the Mobile XE Atomizer Family

The XE HRSM-2000 is the standard mobile fog system in the XE atomizer platform, designed for portable humidification, evaporative cooling, and chemical fogging applications.

HRSM at 45-degrees

Performance Highlights

  • Net Fogging Output: Up to 13.5 GPH
  • Evaporative Cooling Capacity: 109,350 BTU/hr
  • Self-Contained 18-Gallon Water Tank
  • Pivoting Fogging Head for directional control
  • Nozzle-Free Centrifugal Atomizer
  • Quarter-Turn Flow Control Valve
  • Rugged Wheeled Mobile Platform
  • Stainless-Steel Construction with UV-Stabilized Polymers
  • 18-Foot Power Cord
  • Starting at $2,299.00

Optional: SST Stainless Plumbing for oxidizers and sterilization chemicals

Mobile XE Configuration Comparison

Compare Mobile XE models to choose the right control style and application fit for your facility.

Feature [XE] HRSM [XE] HRSM-EXP [XE] CRSM [XE] ORSM
Purpose Humidification Hazardous Locations Chemical Fogging Odor Control / Chemical Injection
Control Type Ball Valve Ball Valve Timer + Auto Shut-Off Smart Control + Auto Shut-Off
Max. Output 13.5 GPH 13.5 GPH 9.0 GPH 8.0 GPH
Bottom Feed Pump No No Yes No
Tank Agitation No No Yes No
Inlet Port for Metering Pump No No Yes Yes
Hazardous-Duty No Yes No No
Best For Humidity / Cooling Classified Areas Pesticides Odor Control & Sterilization

All mobile fog systems ship freight and arrive fully assembled.

Industrial Humidification & Cooling Applications

The Jaybird XE HRSM-2000 mobile fogging system is designed for facilities requiring portable high-volume fog production for environmental conditioning and chemical application.

Using Jaybird’s centrifugal atomizing technology, the HRSM produces ultra-fine fog particles that evaporate quickly while maintaining strong airflow and long projection distance

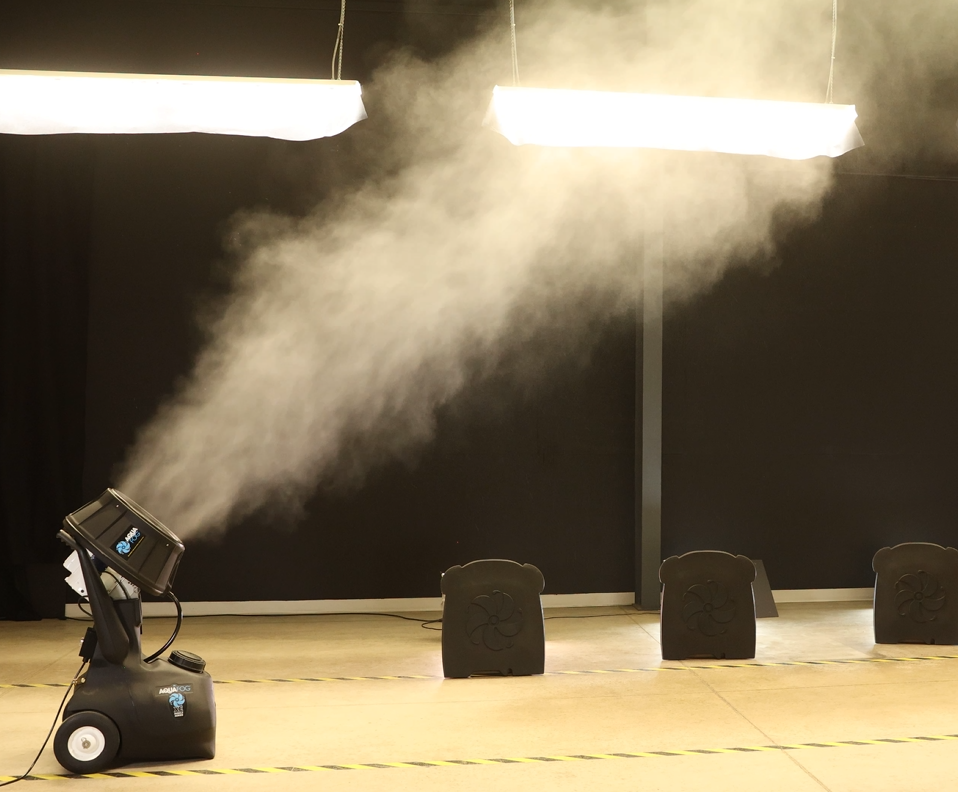

Pivotable Fogging Head

Typical applications include:

  • Industrial humidification systems
  • Manufacturing and production facilities
  • Dust suppression in industrial environments
  • Environmental conditioning and cooling
  • Greenhouse humidity control
  • Agricultural and horticultural operations
  • Chemical fogging and ULV applications

Unlike high-pressure misting systems that rely on small nozzles prone to clogging, the HRSM utilizes Jaybird’s centrifugal atomizer design to provide dependable fog production with minimal maintenance.

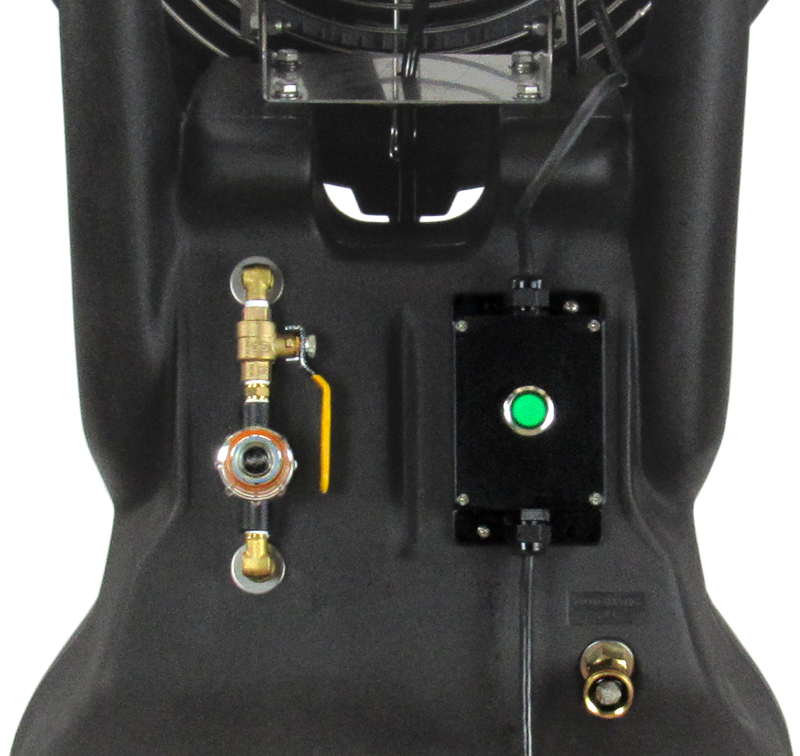

Features & Controls

HRSM units include an internal feed pump, a manual 1/4-turn flow control valve, an illuminated On/Off power switch, and an internal float valve to maintain proper tank water level during operation.

  • Large tank access lid
  • 1/4-turn flow control valve
  • In-line strainer
  • Indoor/Outdoor rated (IP55)
  • Illuminated push-button switch
  • Garden hose connection

The manual ball valve allows operators to adjust fogging output based on the application. Lower feed rates generally produce a drier, finer fog, while higher feed rates increase output volume for broader coverage.

Flow Control Guide

Valve Position Typical Use Fog Character
Full Open Evaporative cooling, greenhouse cooling, concrete curing, mushroom growing Highest output / heavier fog
Mid Open General humidification, horticulture, wine barrel storage, wood/lumber/paper applications Balanced output / general-purpose fogging
Slightly Open Textile humidification, dust suppression, static control, lighter treatment applications Drier / finer fog

Control Tip: Start with a lower valve setting and increase flow only as needed. This helps maintain finer fog quality and reduces excess wetting.

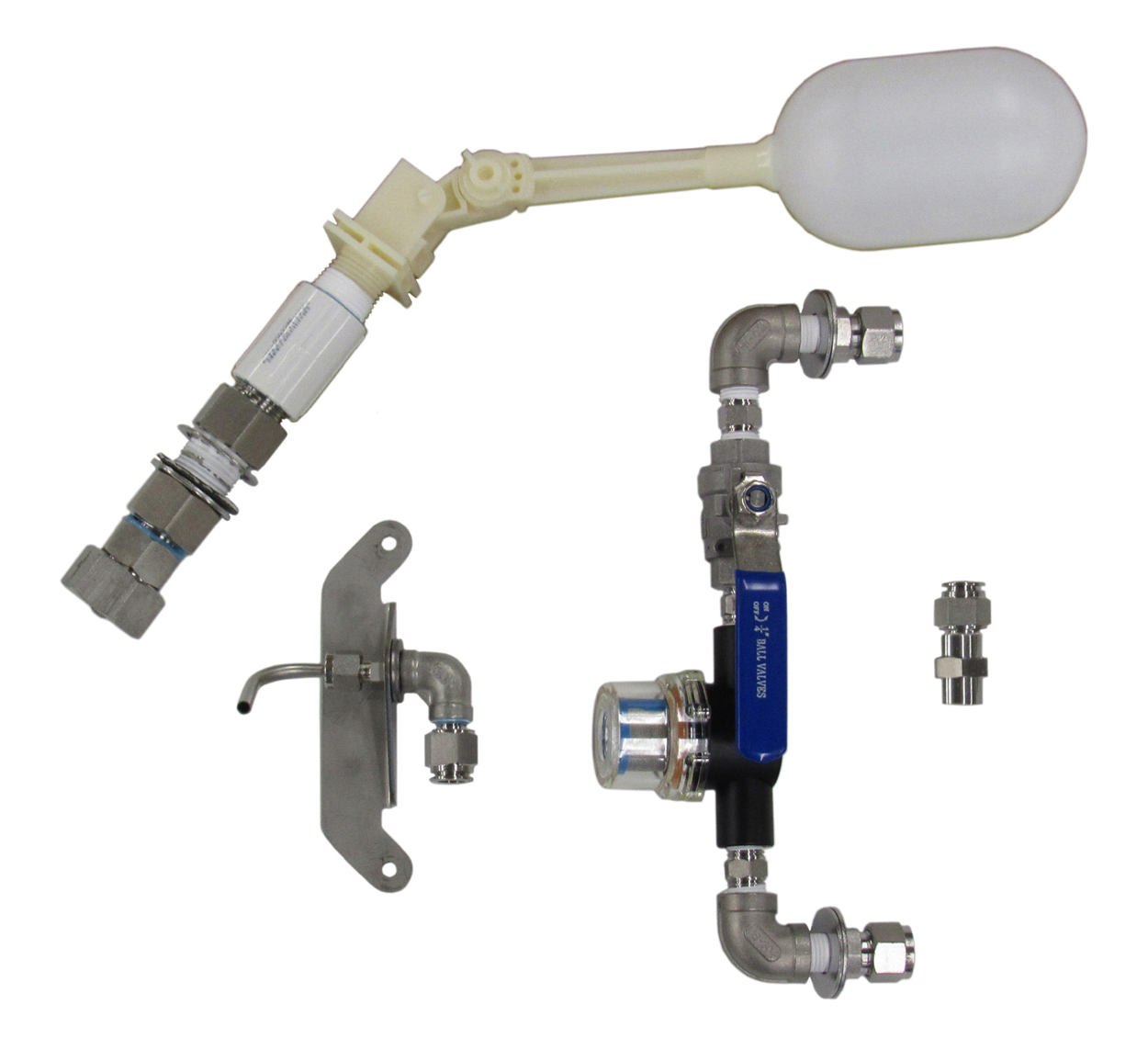

SST Plumbing Option

The (SST) version includes all stainless-steel plumbing components installed in place of standard brass fittings. This option is recommended when fogging highly corrosive chemicals or sanitation solutions.

  • Replaces standard brass fittings
  • 304 (18-8) stainless steel components
  • Complete plumbing system upgrade
  • Factory installed

How Jaybird Atomizes Water Without Nozzles

Jaybird fog systems use a patented centrifugal atomizing blade developed in 1986. Water enters a reservoir behind the fan blade and is forced through internal channels inside each blade. As the blade spins, centrifugal force drives water toward the blade tips where it exits through precision openings.

At the blade tip, several processes occur simultaneously:

  • The rotating blade atomizes the water into fine droplets
  • A venturi accelerates airflow around the blade
  • A ring of atomizing pins further breaks droplets into fog
  • Particle size is variable and desired size can be controlled by the feed rate

This multi-stage atomization process allows Jaybird systems to produce large volumes of fog while using a simple, reliable design with no high-pressure pumps or clogging nozzles.

The result is powerful fog production, strong air propulsion, and long-term reliability.

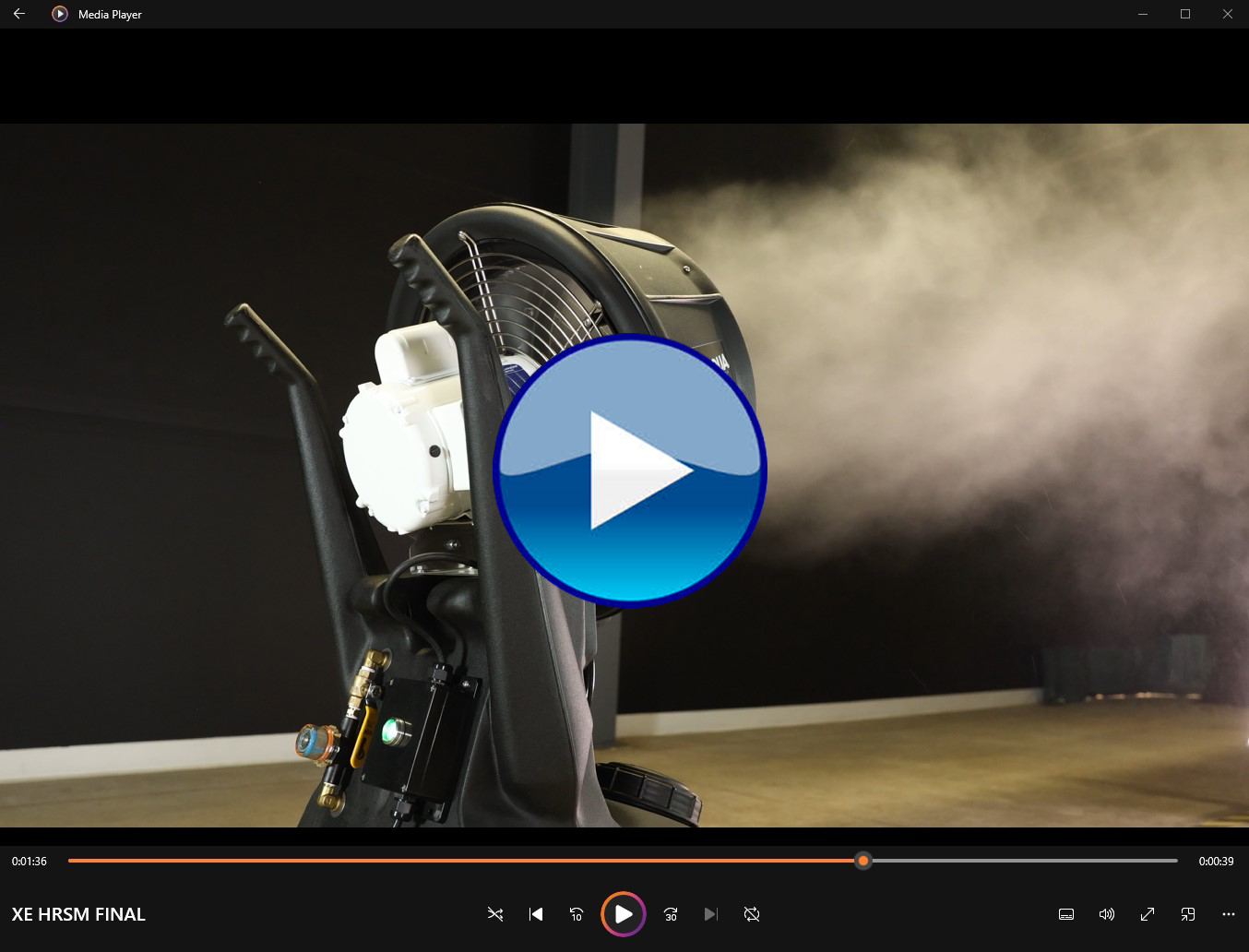

See comparisons of Jaybird atomizers in action (1:17 video)

HRSM - [XE] Atomizer

Dimensions:

Width 21 in / 53 cm

Length 25.5 in / 65 cm

Height 44 in / 112 cm
Approximate Weight: 80 lbs / 36.3 kg
Approximate Shipping Weight: 129 lbs / 58.5 kg
Propulsion Distance: 30 - 35 ft / 9.1 - 10.5 m
Fogging Head Pivot Angle: 0°, 15°, 30°, 45°
Noise @ 10 ft distance:

72 dB(A) - 60Hz

70 dB(A) - 50Hz
Net Fogging Output:

up to 13.5 GPH - 60Hz

up to 41 LPH - 50Hz
Average Particle Size:

5-10 microns @ low output

20 microns @ mid output

25 microns @ high output
Tank Capacity: 18 US gal / 68 L
Main Motor:

1/2 HP - 7.8 amps @ 115V - 60Hz

1/3 HP - 4.4 amps @ 240V - 50Hz
CFM:

3,000 - 60Hz

2,800 - 50Hz
Cooling Capability:

109,000 Btu/h @ - 60Hz

87,500 Btu/h @ - 50Hz
Hardware: 300 Series stainless steel
Environment:

Endures temperatures from
33° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistant
Country of Origin:

USA
  • Digital Humidistat Control

    Environmental Controller w/ Humidity Sensor

    A precision controller suitable for many applications. Control is very fast
    acting, displays humidity levels and has programmable differential range.
    - Not recommended in prolonged use above 90% RH.

    • Fast-acting Digital Sensor
    • Range 5-99% RH
    • Rated up to 1800W (15A @ 115V)
    • Over-Humidity and Sensor Fault Alarm

    DH-120 $132.00
  • Humidistat Control

    Dependable, Easy to Use


    Ideal for control in applications under 80% RH. Controller incorporates a
    mechanical-action humidistat sensor along with a starter contactor. For
    reliable start of high inrush loads of the devices being automated.


    • Range 20-80% RH
    • Differential approximately 7%
    • Rain-tight Enclosure
    • 30A Contactor DPST

    H-120 $184.00
  • 24-Hour Timer Control

    Excellent for controlling long operation cycles

    If your primary interest is long cycle operation, the basic 24-hour timer control is a reliable way to automate the XE mobile units.

    • Supplied with male and female cord set.
    • Rain-tight Nema 3 enclosure
    • Adjustable 15 minute cycles
    • 115V 60Hz
    TC-180 $164.00
  • Thermostat Control

    If your main interest is evaporative cooling

    If your interest is in evaporative cooling, the thermostat control is the best choice to automate your XE mobile units.

    • Water-tight Nema 4X
    • Differential 3º F
    • Control range 40-110º F
    • 100- 250V 50/60Hz
    TH-180 $154.00
  • Temperature-Humidity Meter

    Ideal for applications below 95% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays
    in °F or °C.

    • Temperature range/accuracy: 32 to 122°F (0 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 20 to 95%RH /3%
    • Response time: 60 seconds
    • Power source: CR2032 Lithium-ion battery (included)
    CP-205 $87.00
  • Temperature-Humidity Meter w/ Dew Point

    Ideal for applications up to 100% Relative Humidity

    This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in °F or °C.

    • Temperature range/accuracy: -4 to 122°F (-20 to 50°C)/1.8°F (1°C)
    • Humidity range/accuracy: 0 to 100%RH /3%
    • Response time: 60 seconds
    • Power source: Two "AAA" batteries (included)
    CP-301 $169.00
  • CoolAire™ Smart Controller

    Features two operational modes:

    [ON] - for manual or automated operation (when combined with additional control).

    [SHUT-OFF mode] - will automatically turn off the unit when tank becomes nearly empty.

    Add this smart control feature to your HRSM. A momentary push button switch operates the power supply through an electrical relay that is controlled by an internal fluid-level switch. In “Auto Shut-Off mode”, if the unit shuts down, the tank will require re-filling before resuming operation.

    • Allow extra 2-4 days lead time
    • Includes a Fan Override Toggle Switch
    RSM-AUTO-OFF $235.00
